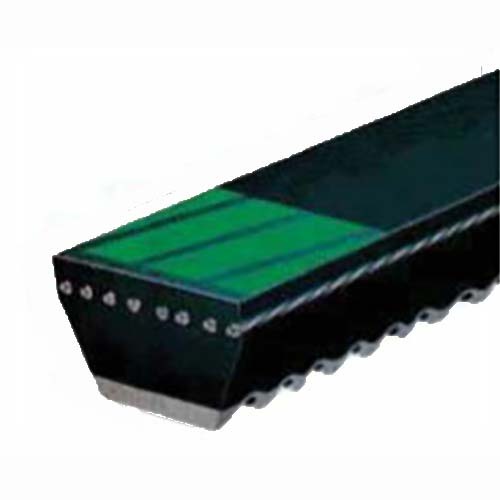

Gates 9650/13A1650 Green Stripe Belt Heavy Duty Engine (8701-9650)
Available
This is the Gates 9650/13A1650 Green Stripe Belt Heavy Duty Engine (8701-9650).
Gates Green Stripe belts, sold under the Green Stripe FleetRunner name, are heavy-duty truck and bus series V-belts, purpose-built to outlast standard belts on demanding diesel engine accessory drives. Gates moulded-notch V-belts are constructed in EPDM, giving a 70% broader temperature range than older belt compounds and resisting the hardening that leads to cracking in high-heat engine bay conditions, item 8701-9650.
Where this product is used
- Truck, bus and coach engine accessory drives, alternator, fan, water pump and air-compressor drives
- Off-highway, construction and heavy agricultural equipment engines subject to shock loads, high heat and vibration
- Fleet and workshop replacement where extended service life reduces unplanned downtime
Features
- OE-quality construction with neoprene jacket
- Polyester tensile cord for stretch resistance
- Extended operating temperature range
- Available in 10A, 11A and 13A metric sections
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Series | Green Stripe (Green Stripe FleetRunner) |
| Configuration | Single V-belt |
| Application | Heavy-duty truck, bus & off-highway engine drives |
| Construction | EPDM moulded-notch compound, oil- and heat-resistant |
Choosing the right option
Select first by configuration: PowerBand (banded) belts are specified where drive whip, long centre distances or belt turnover are a risk, the joined strands cannot slip or roll individually. Single Green Stripe V-belts suit standard single- or multi-groove pulley drives. Then match by belt section and length, or by the OE/Gates part number on the belt you're replacing. Correct belt tension is critical to service life on these drives, see our Gates maintenance and tensioning tools.
Product details
| Part number | 8701-9650 |
|---|---|
| Section | Automotive XL (10A/11A/13A) |
| Top Width (mm) | 13 |
| Belt Thickness (mm) | 8 |
| Material | Rubber compound with polyester tensile cord, fabric jacket |
| V-Belt Code | 9650/13A1650 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates 9650/13A1650 Green Stripe Belt Heavy Duty Engine (8701-9650)
SKU: CA0016789 | Model: 8701-9650
Part No: 8701-9650. Section: Automotive XL (10A/11A/13A). Top Width (mm): 13.
