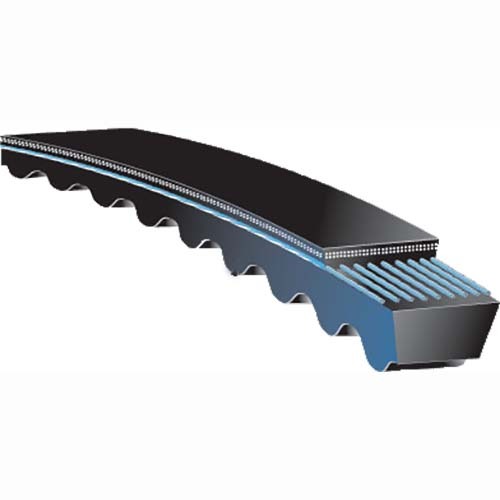

Gates Tri-Power Notched (Cogged) Classical Section Belt

• Gates Tri-Power V-belt is built for superior performance on heavy duty drives of classical cross-section
• The raw edge construction and special notch design make the Tri-Power belt specially suited for drives requiring small diameter pulleys and back idlers
• The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

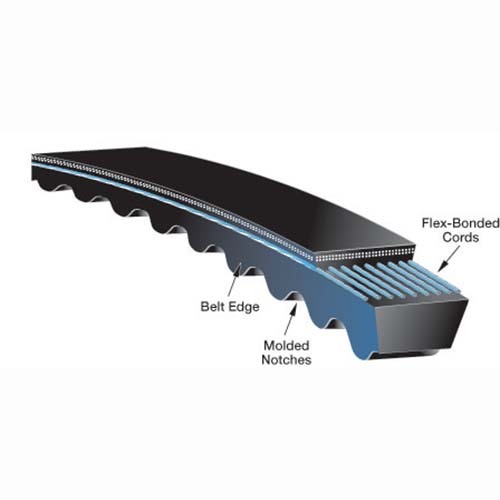

Construction

• Classical cross-section
• Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking
• Fiber-loaded compound for improved belt stability
• Raw edge construction
• The moulded notch pattern also reduces noise
• Precision-ground sidewalls give a uniform wedging action
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• 15% capacity increase over wrapped belts
• Increase efficiency up to 3% over wrapped belts
• Use smaller diameter pulleys than wrapped belts
• Moulded notches reduce and evenly distribute thermal and bending stresses
• Match free system: all sizes meet Gates V80 tolerances, can be installed without matching
• Back idlers can be used

Temperature Range

• Range: -57°C to +121°C
