Gates Draftguard (7814-0007) Locking Ring

This is the Gates Draftguard (7814-0007) Locking Ring.

This Gates Draftguard component is a spare/service part for the Draftguard anti-rotation device. Draftguard prevents a fan drive from spinning backwards after shutdown, a real risk on induced- or forced-draught fan drives, where airflow across the blades can windmill the fan in reverse, and protects the belt, sheaves and motor from the shock load this causes at the next start-up. This is the Locking Ring (Item 7814-0007), fitting Taper-Lock or QD bushing bores already used on the drive.

Where this product is used

• Gates Draftguard enclosed drive assemblies requiring correct spacer and locking-ring fitment
• Drive system installation and assembly where Gates-specified components ensure drive integrity
• Maintenance and rebuild of enclosed belt drive units in industrial and agricultural applications

Features

• Built to the Gates specification for the family
• Compatible with matching Gates drive components
• Item Code: 7814-0007
• Component: Draftguard Locking Ring

Key specifications

Choosing the right option

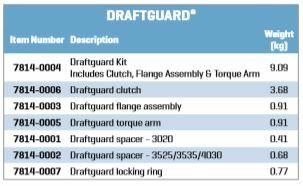

A complete Draftguard Kit (clutch, flange assembly and torque arm) is also available new.

Product details
