***Minimum order of 99.97m ***

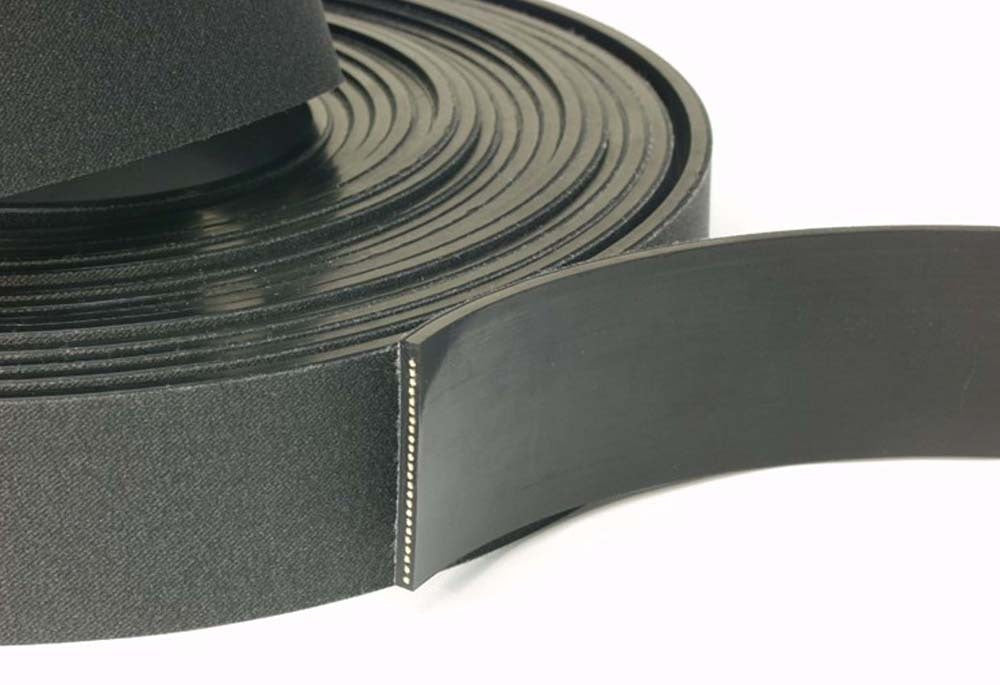

Gates F160 Live Roller Drive Belt (Thermoplastic Polyurethane Belt)

About F160 Live Roller Drive Belt

• High speed and Durable Intralogistics Belt Solution.
• Our advancements in materials science, design engineering and processing technologies allow Gates to deliver a high quality and performance live roller belt to operate reliably at high speed.
• Aramid reinforcement ensures a safe and longer lifespan operation for our customers’ warehouse and distribution conveyors.
• The F160 belt is an open ended flat belt with a high grip top side to the live rollers and a low friction and anti-static fabric bottom side to improve safety and reliability.
• Gates® F160 belts are designed to meet the specific needs of demanding, high-performance applications in automated warehouse systems.
• The F160 belt combines the durability of top-quality with a reliable partnership, making Gates the number one choice for polyurethane flat synchronous belts.
• You can be confident in F160’s reliability for your high speed roller drives.

METRIC
IMPERIAL

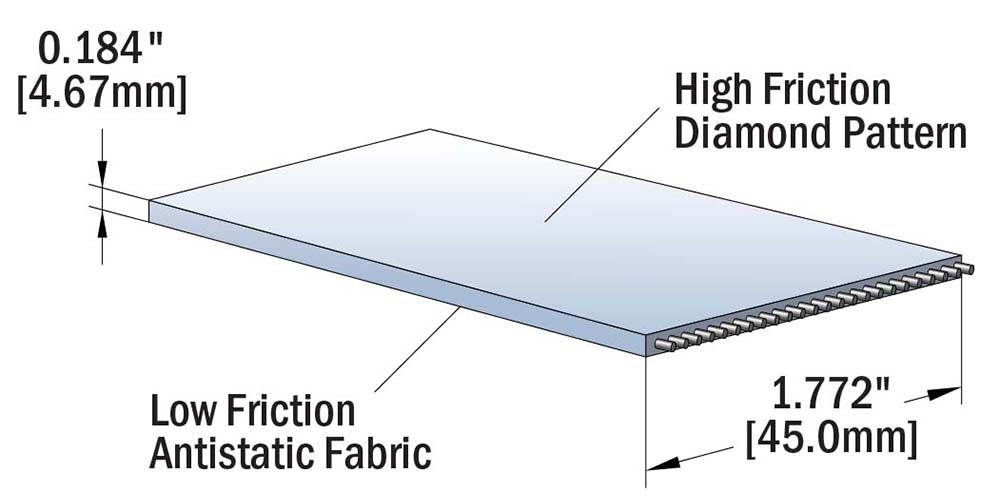

Standard Thickness
4.7 +/- 0.2 mm
0.184 +/-0.008 in
Standard Roll Length*
up to 150 m
500 ft
Standard Color
Black
Black
Cord
Aramid
Aramid
Minimum Pulley Diameter
100 mm
3.94 in
Fda/Eu Approval
No
No
Polyurethane
92° Shore A
92° Shore A
Top Surface
Knurled Polyurethane
Knurled Polyurethane
Bottom Surface
Antistatic Fabric
Antistatic Fabric
Operating Temperature
-5°C to +70°C
+23°F to 158°F
Splice
Interleaved finger heat welded
Interleaved finger heat welded
Recommend Finger Length
155 mm (min.)
6.1 in (min.)

Technical Data

Standard Width
45 +0/-1 mm
1.77 +0/-0.04 in
Ultimate Tensile Strength
33300 N
7490 lbf
Allowable Belt Tension
4360 N
980 lbf
Specific Belt Weight
0.24 kg/m
0.16 lb/ft
Specific Belt Stiffness
19000 N/mm
108000 lb/in

Product Specifications

Features and Benefits

• High friction, knurled diamond pattern on top ensures high grip and less slip on the rollers.
• Low friction antistatic fabric on the bottom prevents static buildup.
• Aramid cord design for lower stretch and longer life compared to competitor belts.
• Designed to be spliced with OEM equipment.
• Available in roll lengths up to 660 ft. (200 metres). Contact AIMS for assistance.
