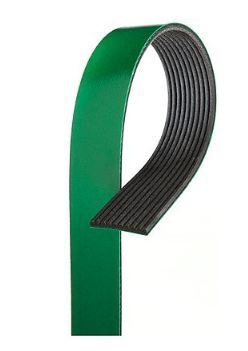

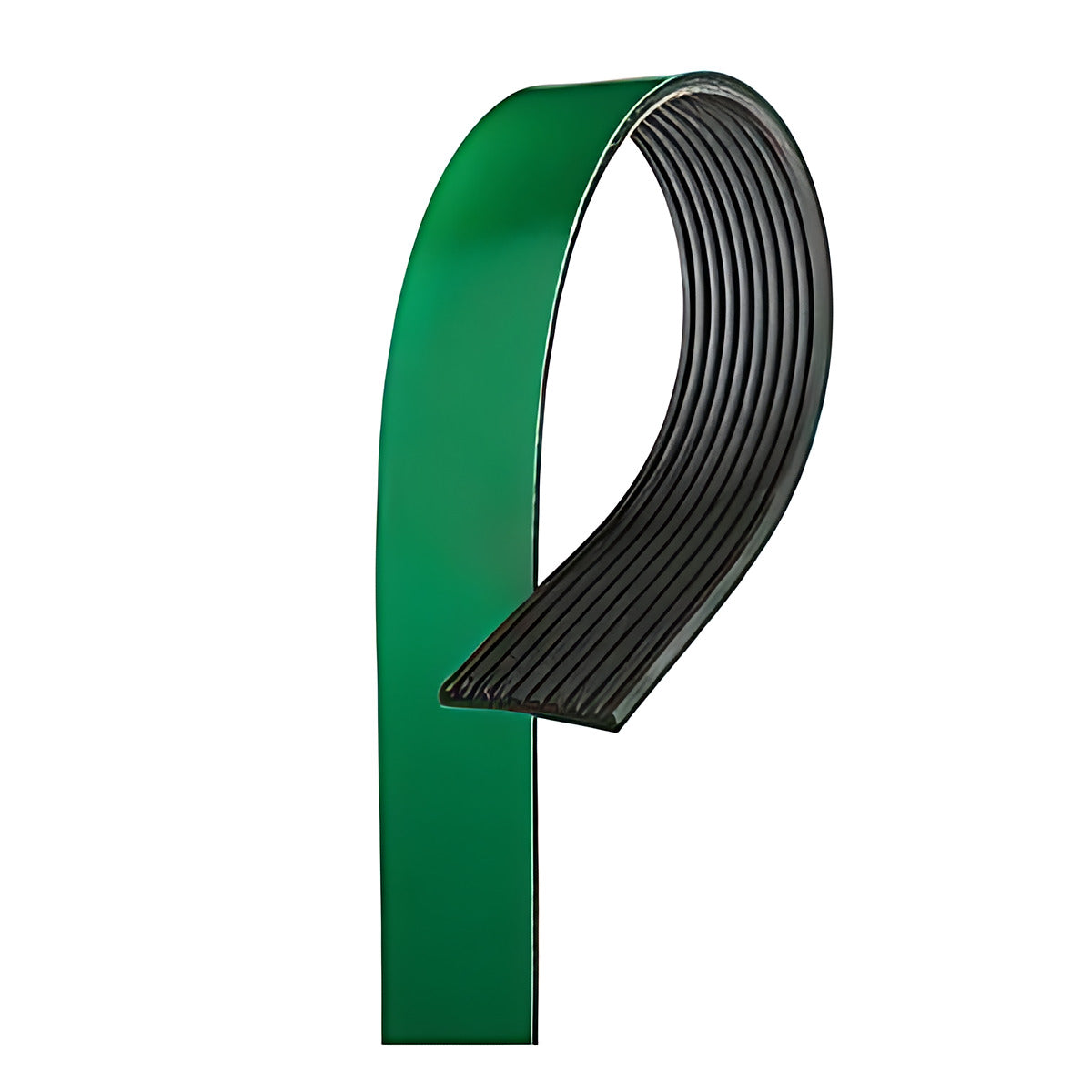

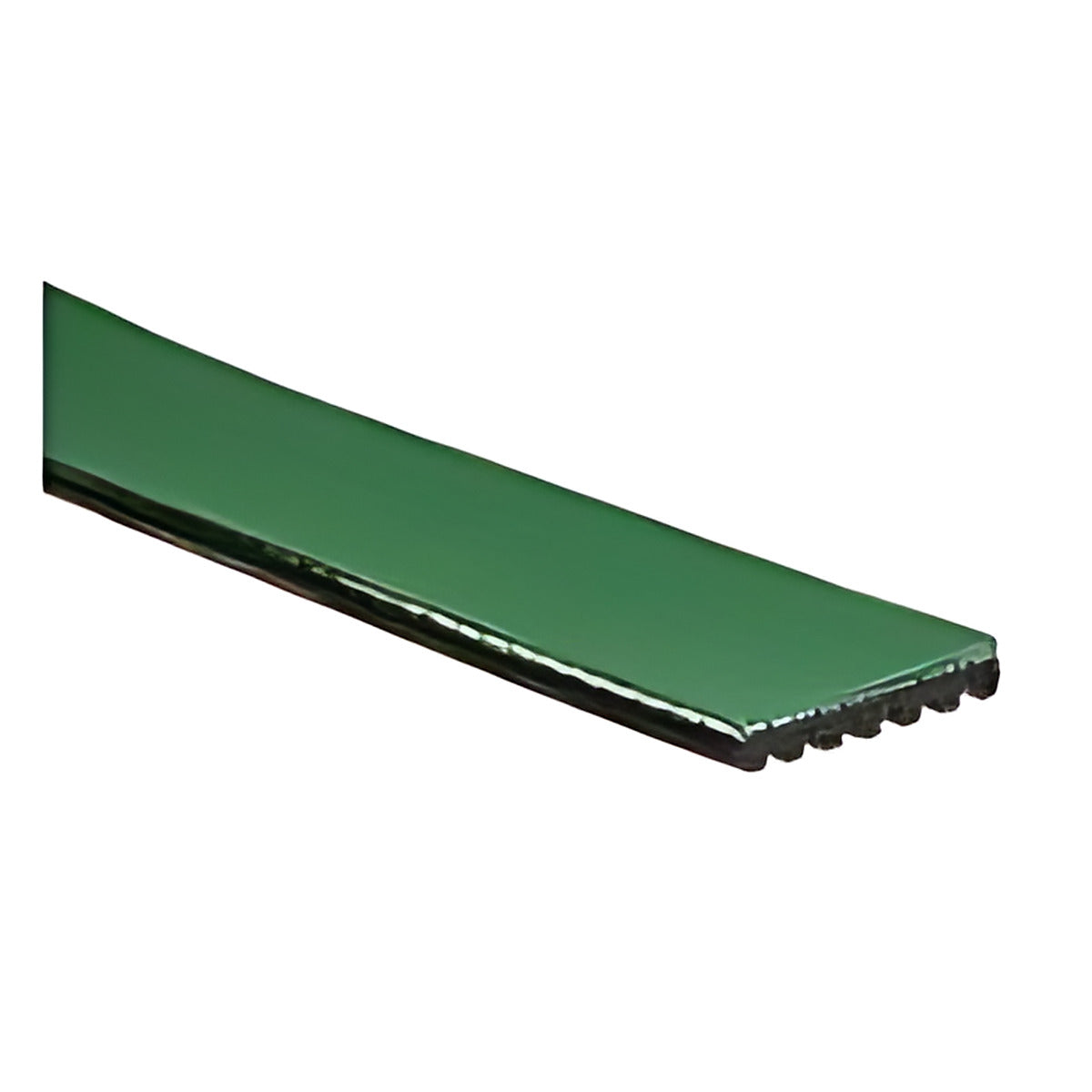

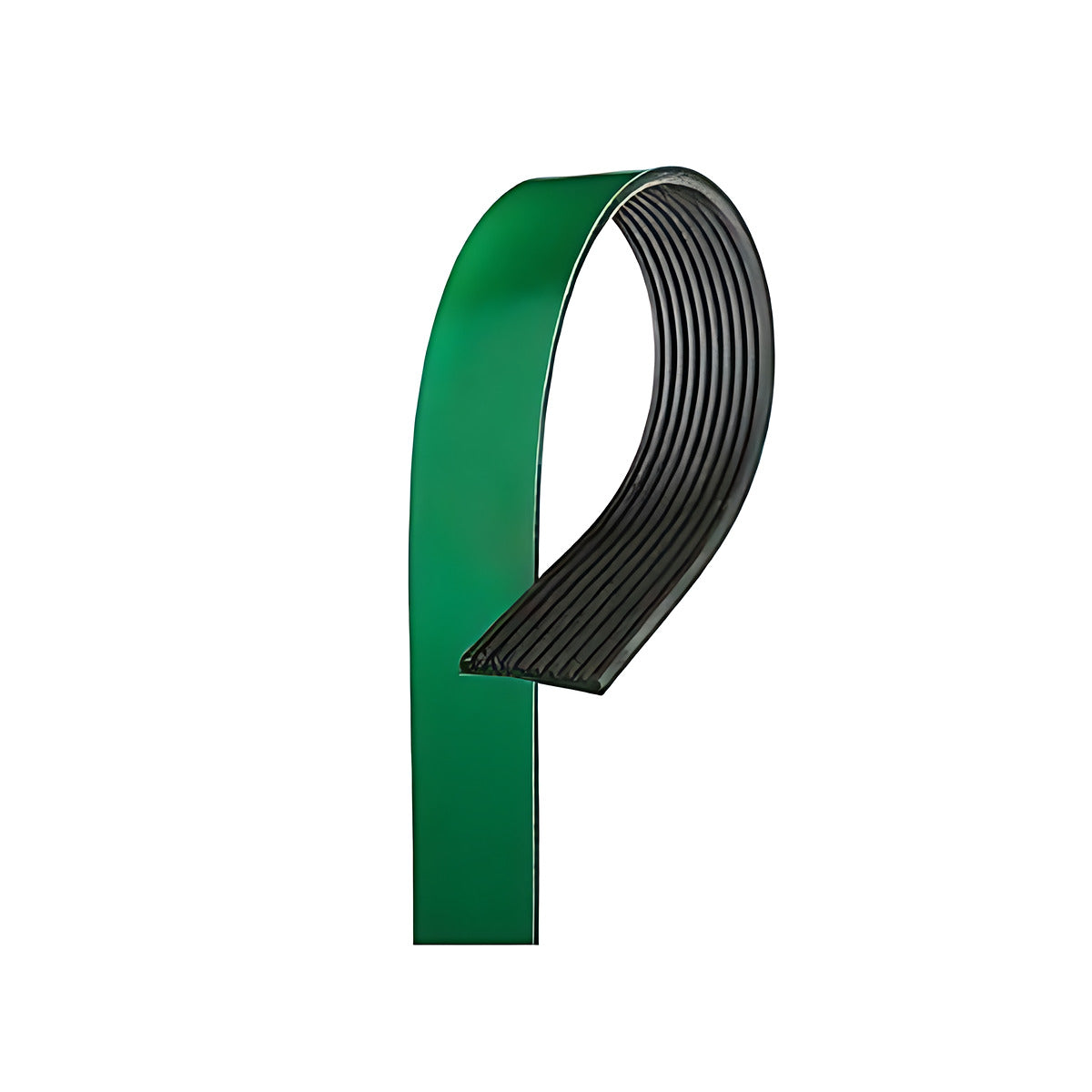

Gates HD Fleetrunner Micro 12, 12PK1627HD/K120640HD
Available
Gates HD Fleetrunner Micro-V belt (K section, 12 ribs) is an EPDM-compound serpentine accessory-drive belt built for the higher loads and continuous duty cycles of heavy commercial vehicles.
Where this product is used
- Alternator, power steering pump, air conditioning compressor and water pump drives on heavy commercial vehicles
- High-mileage, continuous-duty fleet and commercial vehicle applications
- OE-equivalent replacement on scheduled heavy-vehicle services
Features
- Heavy-duty construction for extended fleet service life
- Reinforced tensile cord resists stretching and shock loads
- Aramid or polyester reinforcement options
- EPDM compound for high-temperature stability
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | K |
| Series | HD Fleetrunner, Gates heavy-duty commercial vehicle Micro-V belt |
| Material | EPDM compound |
| Ribs | 12 |
| Application Category | Automotive |
| Standards | Meets or exceeds SAE, DIN and JASO belt standards (Gates) |
| Construction | OE-exact sizing and tolerances, abrasion-resistant back pattern for backside idler/pulley contact, manufactured without chlorinated compounds |
Choosing the right option
Select by belt section (J or K) and rib count to match your vehicle's original belt, or cross-reference by Gates or OE part number, the code reads as ribs + section + length in mm (e.g. 6PK1200 = 6 ribs, K section, 1200mm). K section is the modern automotive standard; J section is still used on some models. See our industrial Micro-V range.
| Option | Part number | SKU |
|---|---|---|
| 12PK1019HD/K120400HD | 8555-0179 | A0035510 |
| 12PK1145HD/K120450HD | 8555-0115 | A0035464 |
| 12PK1212HD/K120476HD | 8555-01096 | A0035460 |
| 12PK1336HD/K120525HD | 8555-0193 | A0035522 |
| 12PK1509HD/K120594HD | 8555-0209 | A0035534 |
| 12PK1555HD/K120610HD | 8555-0034 | A0035377 |
| 12PK1627HD/K120640HD | 8555-0287 | A0035596 |
| 12PK1831HD/K120720HD | 8555-0405 | A0035681 |
| 12PK1853HD/K120729HD | 8555-01015 | A0035438 |
| 12PK1875HD/K120738HD | 8555-0799 | A0035753 |
| 12PK1997HD/K120786HD | 8555-0324 | A0035627 |
| 12PK2069HD/K120815HD | 8555-0070 | A0035403 |
| 12PK2139HD/K120842HD | 8555-0032 | A0035376 |
| 2PK2179HD/K120858HD | 8555-0369 | A0035660 |
| 12PK2194HD/K120864HD | 8555-0131 | A0035474 |
| 12PK2201HD/K120866HD | 8555-0314 | A0035618 |
| 12PK2211HD/K120870HD | 8555-0320 | A0035623 |
| 12PK2216HD/K120872HD | 8555-0260 | A0035574 |
| 12PK2231HD/K120878HD | 8555-0263 | A0035577 |
| 12PK2264HD/K120891HD | 8555-0268 | A0035580 |
| 2PK2287HD/K120901HD | 8555-0041 | A0035380 |
| 12PK2294HD/K120903HD | 8555-0270 | A0035582 |
| 12PK2312HD/K120910HD | 8555-0347 | A0035644 |
| 12PK2315HD/K120911HD | 8555-0037 | A0035378 |
| 12PK2380HD/K120938HD | 8555-0272 | A0035584 |
| 12PK2615HD/K121029HD | 8555-0144 | A0035485 |
| 12PK2640HD/K121039HD | 8555-0152 | A0035491 |
| 12PK2687HD/K121058HD | 8555-0311 | A0035615 |
| 12PK2502HD/K120985HD | 8555-0002 | A0035354 |
| 12PK2542HD/K121000HD | 8555-0005 | A0035357 |
| 12PK2449HD/K120964HD | 8555-0049 | A0035386 |
| 12PK2489HD/K120980HD | 8555-0132 | A0035475 |
| 12PK2478HD/K120975HD | 8555-0202 | A0035531 |
| 12PK2367HD/K120931HD | 8555-0273 | A0035585 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates HD Fleetrunner Micro V Belt Heavy Duty - K Section - 12 Ribs: 12PK1627HD/K120640HD
SKU: A0035596 | Model: 8555-0287
8555-0287: gates HD Fleetrunner Micro 12, 12PK1627HD/K120640HD. Number of Ribs: 12. Belt Length (mm): 1627.
