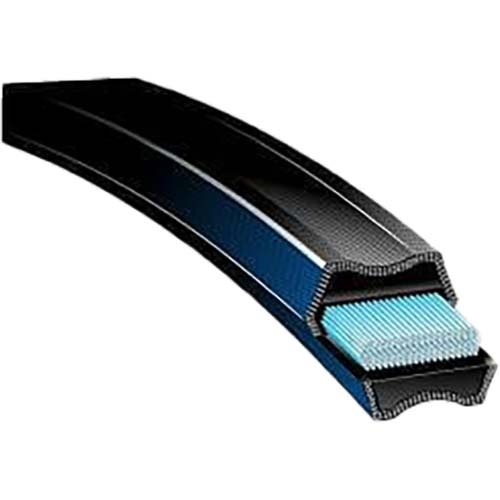

Gates Hi-Power® II Dubl-V Belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave® Cover for extended protection. It is the ideal solution for “serpentine” drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt.

Top Width: 21/32" (17mm)

Depth: 13/32” (13mm)

Length: Measured in Inches According to the Internal Circumference as designated by the Product name – eg. a BB90 has an Internal Circumference of 90” (2,286mm)

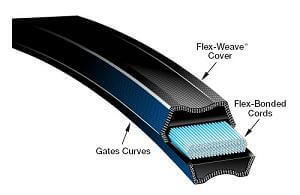

Construction

• Classical cross-section
• Unique recessed top and bottom
• Fibre-loaded compound for improved belt stability

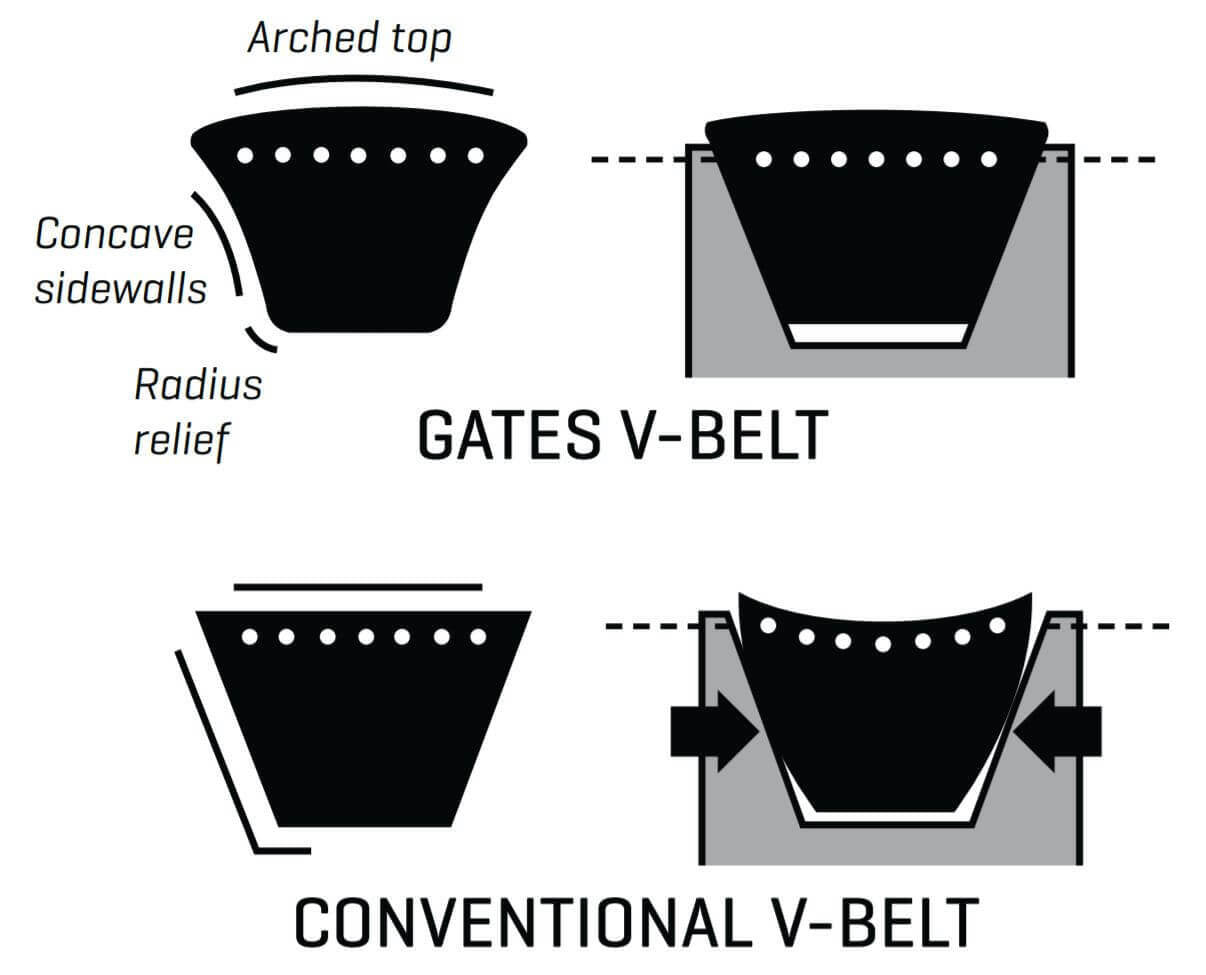

• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Power transmission from both sides of the belt
• Premium performance
• Excellent performance/cost ratio
• Suitable for dirty/dusty environments
• Match free system: meets Gates V80® tolerances, can be installed without matching
• Tolerates mild clutching or drive slip

Temperature Range

-35°C to +60°C

AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor

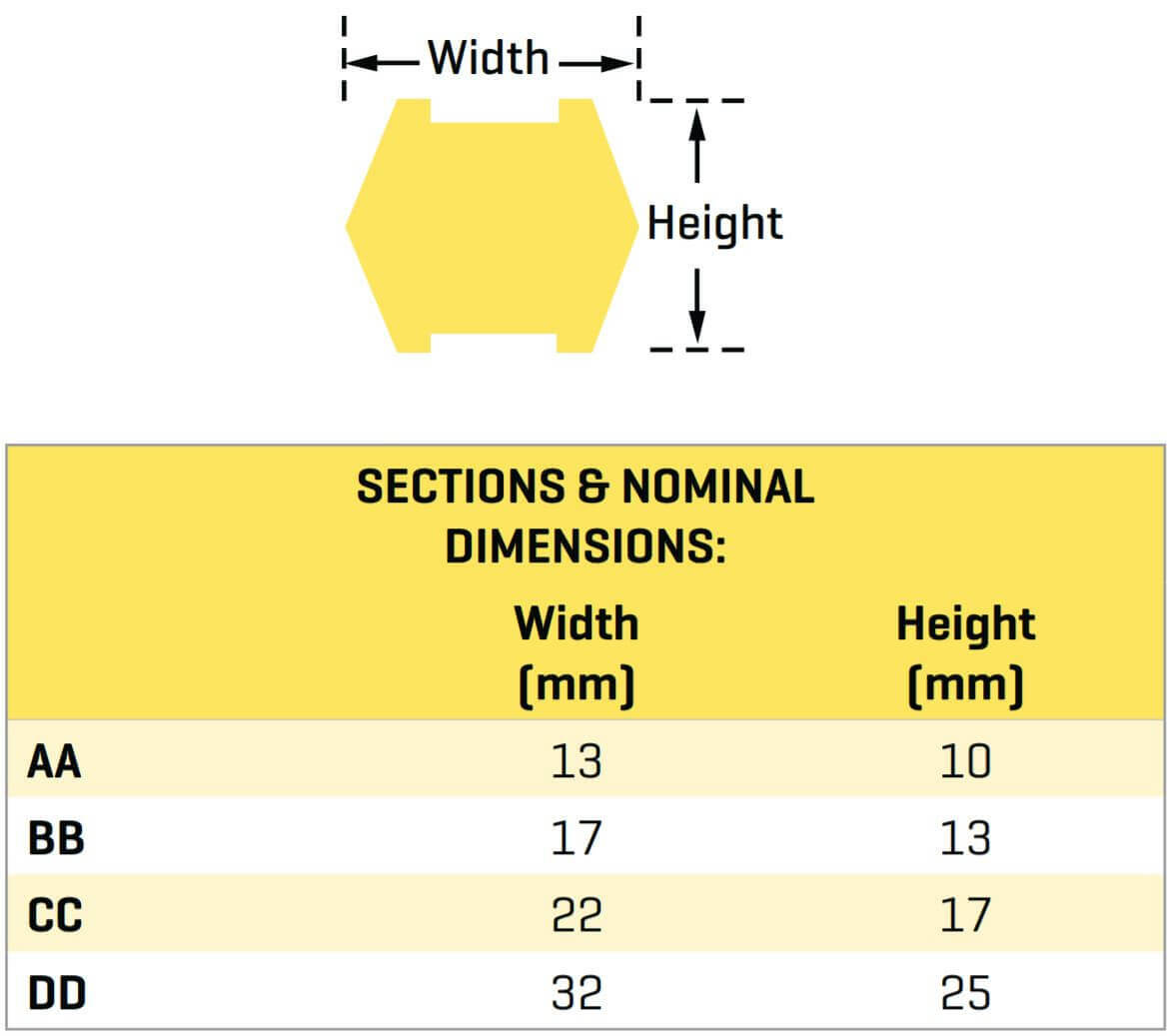

Dimensions
