Description
Description
Descriptions
- Gates Hi-power® II Powerband® offers a solution for drives where single belts vibrate, turn over or jump off the pulleys

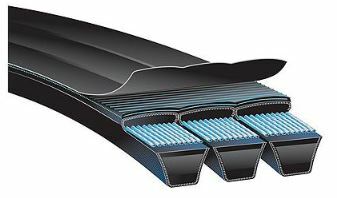

- Hi-power® II Powerband® is especially developed for drives subjected to pulsating loads. It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.

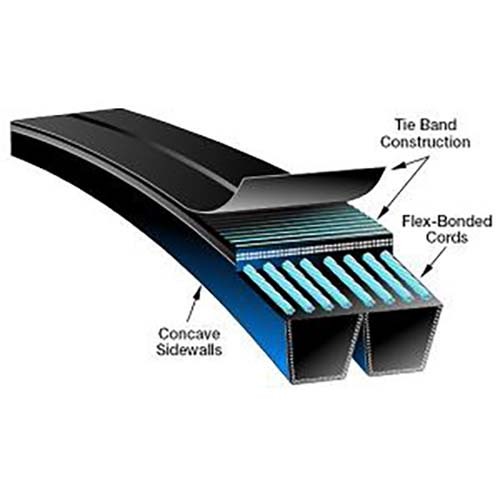

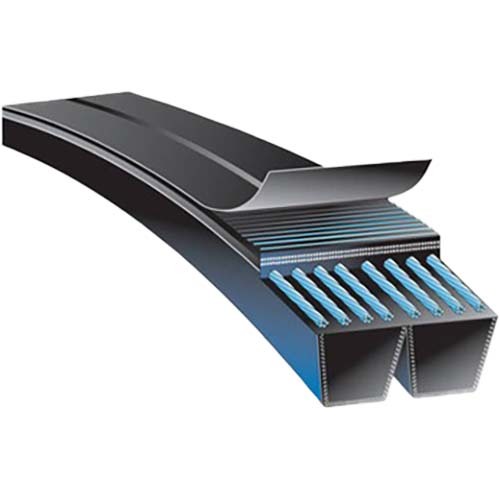

Construction
- Classical cross-section
- Strong tie band joins the back of all belts
- Fibre-loaded compound for improved belt stability
- Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
- Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Premium performance
- Better resistance to vibrations
- High stability and smooth running on the toughest drives
- Premium performance
- Excellent performance/cost ratio
- Suitable for dirty/dusty environments
- Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
- Back idlers can be used
- Tolerates mild clutching or drive slip
Temperature Range
- Range: -35°C to +60°C
Specifications
Specifications
Dimensions
- Section: A
- Number of Ribs: 2
- Pitch: 15.88 mm
- Width: 13 mm
- Height: 8 mm
- Inside Length: 62 in
Applications
Applications
Features & Benefits
Features & Benefits
