Descriptions

• Gates Hi-power® II Powerband® offers a solution for drives where single belts vibrate, turn over or jump off the pulleys
• Hi-power® II Powerband® is especially developed for drives subjected to pulsating loads. It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.

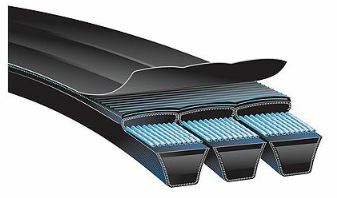

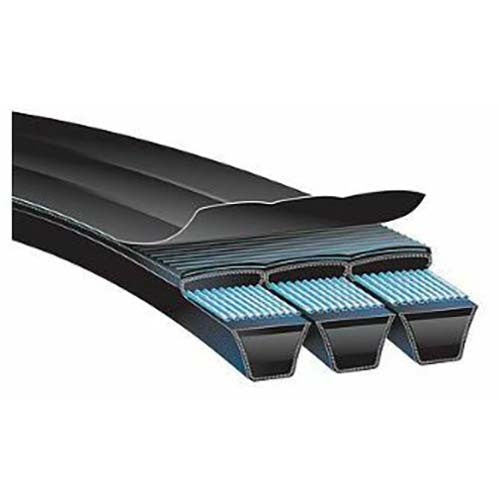

Construction

• Classical cross-section
• Strong tie band joins the back of all belts
• Fibre-loaded compound for improved belt stability
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Premium performance
• Better resistance to vibrations
• High stability and smooth running on the toughest drives
• Premium performance
• Excellent performance/cost ratio
• Suitable for dirty/dusty environments
• Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
• Back idlers can be used
• Tolerates mild clutching or drive slip

Temperature Range

• Range: -35¬∞C to +60¬∞C

Dimensions

• Section: C
• Number of Ribs: 5
• Pitch: 25.4 mm
• Width: 22 mm
• Height: 14 mm
• Inside Length: 390 in
