Gates Long Length HTD Glass Cord Rubber Belt - 8M Section - 10
Available

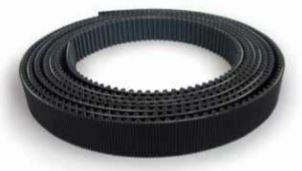

This is the Gates Long Length HTD Glass Cord Rubber Belt - 8M Section.
Gates HTD timing belts 8M section use a curved tooth profile for improved load distribution and higher torque capacity than trapezoidal timing belts. They are a well-established standard for industrial synchronous drives where moderate-to-high torque transmission is required, items 9308-10044 to 9308-10063.
Where this product is used
- Purpose-built or one-off synchronous drives where no standard endless length is available
- Machinery builders cutting and joining belts to a custom pitch length on their own equipment
- Maintenance teams holding bulk belting on hand for fast turnaround repairs
Features
- Zero-slip positive drive
- Fibreglass tensile cord for stretch resistance
- Compatible with matching Gates pulleys
- Industrial-grade synchronous transmission
Key specifications
| Specification | Detail |
|---|---|
| Pitch | 8mm (8M) |
| Belt Series | PowerGrip HTD, long-length belting |
| Cord Construction | Glass (fibreglass) |
| Supply Form | Bulk length, ordered in minimum-quantity increments and cut to size |
| Recommended Sprockets | Gates PowerGrip HTD sprockets |
| Brand | Gates |
Choosing the right option

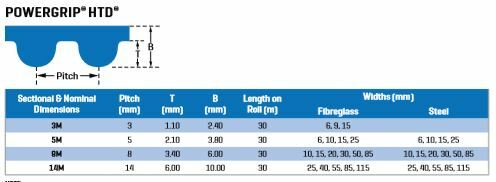

Standard fibreglass-cord long-length HTD, 8mm pitch, is available in 20, 30, 50 and 85mm widths (Gates part codes LL8M20/30/50/85), minimum order 50 ft, maximum continuous length 170 to 300 ft depending on width.
| Option | Part number | SKU |
|---|---|---|
| 10 | 9308-10044 | A0026782 |
| 15 | 9308-10045 | A0026783 |
| 20 | 9308-10046 | A0026784 |
| 30 | 9308-10019 | A0026776 |
| 50 | 9308-10063 | A0026793 |
Product details
| Model | 9308-10044 |
|---|---|
| Part number | 9308-10044 |
| Pitch (mm) | 8 |
| Depth (mm) | 6 |
| Teeth Depth (mm) | 3.4 |
| Belt Width (mm) | 10 |
| Length (mm) | 30000 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Long Length HTD Glass Cord Rubber Belt - 8M Section: 10
SKU: A0026782 | Model: 9308-10044
Part No: 9308-10044. Pitch (mm): 8. Depth (mm): 6.
