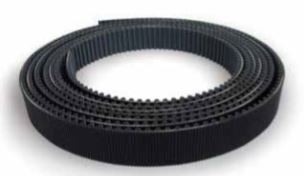

Descriptions

• Long Length belting is a special alternative to the timing chain for reverse positioning drives
• Open-end synchronous belting is suitable for linear movements (automated doors, automated warehouse conveyors and elevators), accurate positioning (machine tools, x-y coordinate machines) and reversal drives (computers, printers and office equipment)
• Gates Long Length belting is available in various sizes, constructions and tooth designs to cover a wide range of loads, speeds and applications

Construction

• Carbon fibre tensile cord
• Polyurethane teeth and backing
• Fabric reinforced teeth

Advantages

• High positioning accuracy, making the belt ideally suited for applications with repetitive movements
• High power transmission due to the use of sophisticated materials and tooth profiles
• Positive power transmission with low axial load
• Length stability due to the use of high modulus tensile members
• Easy to attach with clamping fixtures
• Low maintenance
• No environmental pollution due to lubricants

Temperature Range

• Range: -54°C to + 85°C

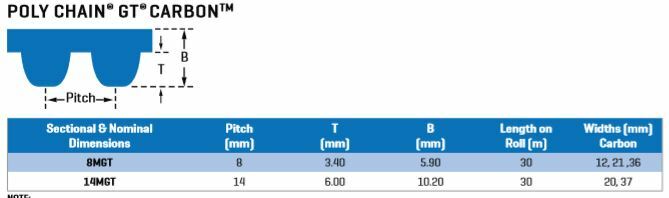

Dimensions

• Section: 8MGT
• Roll Length: 30 m
• Cord Type: Carbon fibre
• Pitch: 8 mm
• Belt Width: 12 mm
• T: 3.4 mm
• B: 5.9 mm
