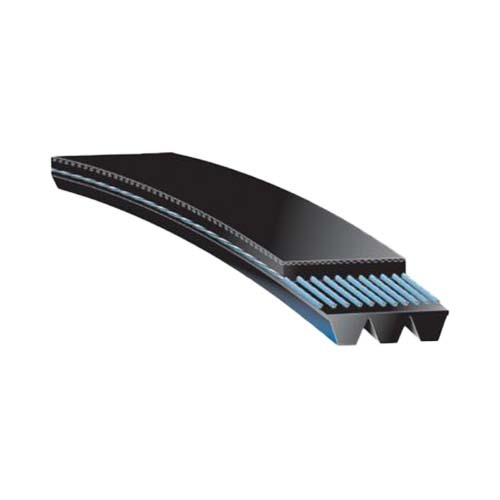

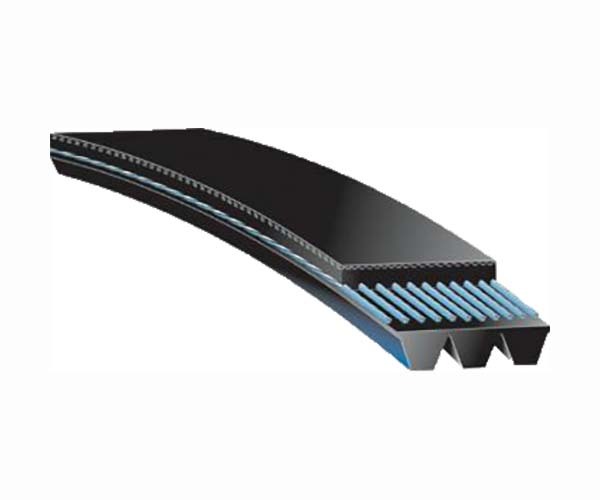

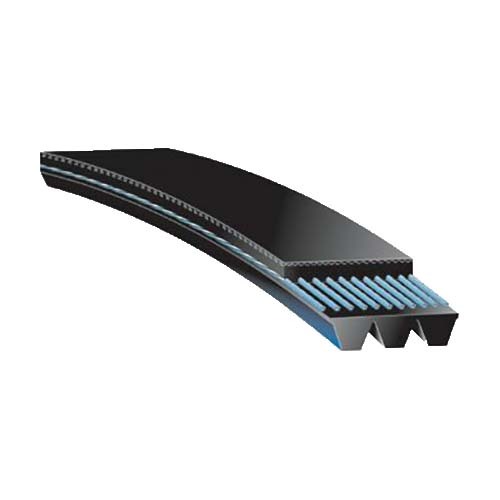

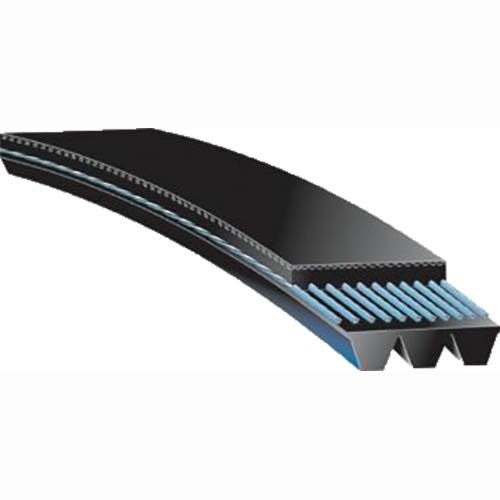

Gates 160J4 Micro-V Belt, 4 Ribs, J

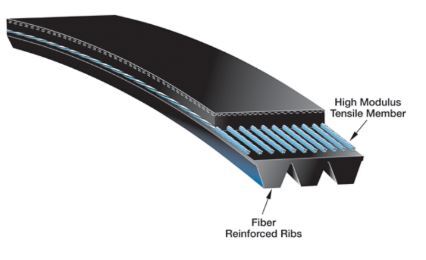

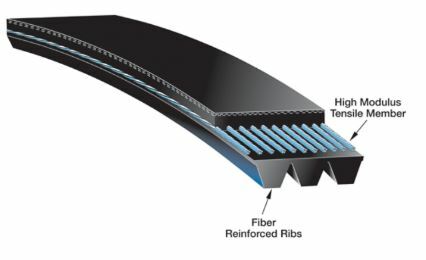

Gates Micro-V belts are multi-ribbed (serpentine-profile) industrial belts — a single belt with several parallel small ribs running in a matching grooved pulley, replacing multiple narrow V-belts on one drive. The J section suits industrial multi-ribbed drives across machine tools, conveyors, appliances, outdoor power equipment and medical/exercise equipment. Gates Micro-V belts are stocked by AIMS Industrial for rapid supply across Australia.

Where this product is used

Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:

• Appliances and domestic/commercial white goods — washing machines and other multi-ribbed drives
• Outdoor power equipment, roller conveyors and machine tools
• Medical equipment and exercise/fitness equipment
• General industrial multi-ribbed drives — textile machinery, vacuum systems and workshop equipment

Key specifications

Selecting the right option

Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt instead? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length. When in doubt, call AIMS — power transmission is our specialty and we'll confirm the right cross-reference.
