Descriptions

• Gates Micro-V® multi-ribbed belts ensure outstanding performance on any industrial multi-ribbed drive
• They cover a multitude of industrial applications and are suitable also for industrial drives in washing machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more
• The full line of Micro-V® belt products include sleeves in several widths as well as single belts in PJ, PL and PM sections in order to perfectly match customer requirements

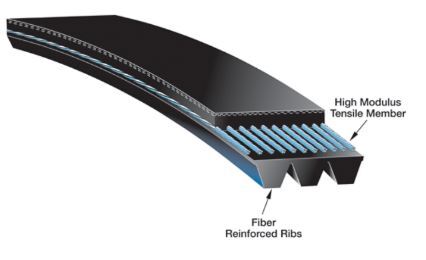

Construction

• Truncated ribs (tips removed) ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
• Fibre-loaded compound for improved belt stability
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Extremely smooth and cool running
• Very high power capacity per rib
• Long life due to extra load-carrying capacity
• Improved performance on back idlers
• Smaller drive package
• Tolerant of pulley groove debris
• Back idlers can be used.

Temperature Range

• Range: -35¬∞C to +80¬∞C

Dimensions

• Section: J
• Ribs: 18
• Pitch: 2.34 mm
• Height: 3.5 mm
• Effective Length: 520 (1/10-inch)
• Belt Width: 73.3777777777778 mm
