Descriptions

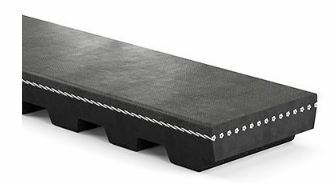

• Gates Multi-Speed belt provides top performance on variable speed drives
• It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios
• In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request

Construction

• Narrow cross-section
• Engineered notch contour increases flexibility. The notches ensure maximum heat dispersion, considerably decreasing running temperatures.
• Flex-Bonded tensile cords
• Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. This results in even load distribution and wear reduction.
• Uniform composition and thickness of the undercord ensure smooth and silent running
• Combination of these construction features gives maximum speed adjustment

Advantages

• Maximum range of speed changes
• High load-carrying capacity
• Smooth machine operation
• Exceptionally long belt life

Dimensions

• Standardized Section (ISO R 1604): W25
• Top Width (mm): 26 mm
• Pitch Length: 800 mm
• Angle: 26°
