Gates 1000W31.5 (9802-10036) Multi-Speed
Out of stock

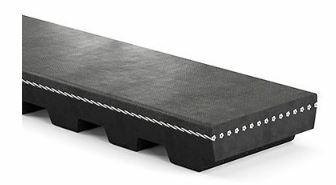

Gates Multi-Speed belts are a wide, raw-edge V-belt built for variable-speed drives, where the sheave pitch diameter — and so the drive ratio — changes continuously in operation. The notched, self-adjusting cross-section maintains grip on the pulley groove across the full speed range.
Where this product is used
Multi-Speed belts suit any drive that needs to change speed ratio without a gearbox. Typical applications include:
- Variable-speed pulley (sheave) drives on machine tools, fans and mixers
- Agricultural and processing machinery needing adjustable output speed
- Any drive where special top width, thickness or angle sizing is needed — available on request
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | W31.5 |
| Belt Series | Multi-Speed — wide raw-edge, notched variable-speed belt |
| Available Stock Sizes (Gates range) | Widths 3/4 to 3-7/8 in; lengths 26 to 193 in (special top width, thickness and angle available on request) |
| Construction | Notched design self-adjusts to the pulley groove for smooth, low-vibration running at high speed |
Selecting the right option
Select by section (W16, W25, W31.5, W40, HV or a special size) and outside circumference, or by the OE/existing belt part number — Multi-Speed sections aren’t interchangeable with standard fixed-ratio V-belts. Contact AIMS if you need to confirm the section from a worn or unmarked belt, or to order a special size.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
33 / 39.37 / 1000W31.5
Model Number: 9802-10036
-
33 / 44.09 / 1120W31.5
Model Number: 9802-10037
-
33 / 49.21 / 1250W31.5
Model Number: 9802-10038
