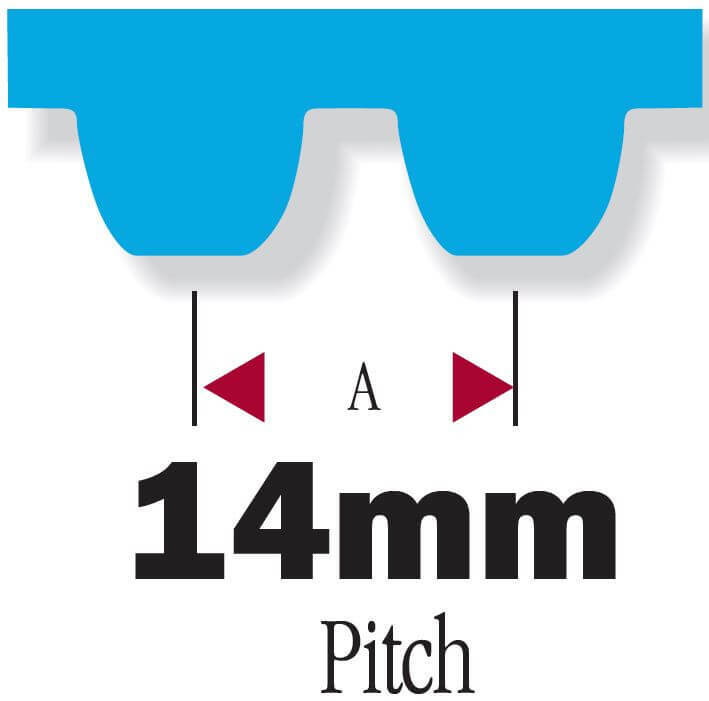

Gates Poly Chain GT Carbon Belt - 14MGT Section

**All PolyChain belts are shipped without their original box. This is done in order to significantly reduce freight costs. If you would like to have your belt shipped in its original box, please DO NOT order online. Please contact our office and we will confirm any additional freight costs**

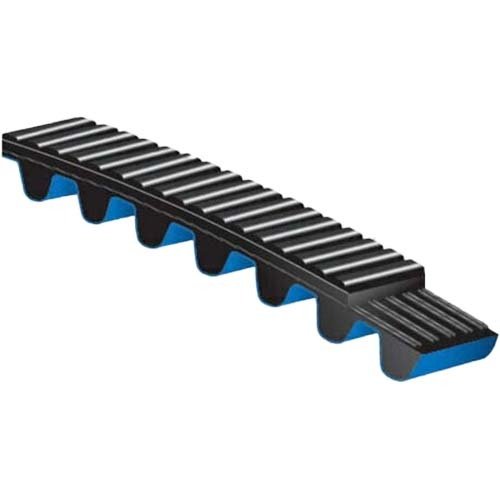

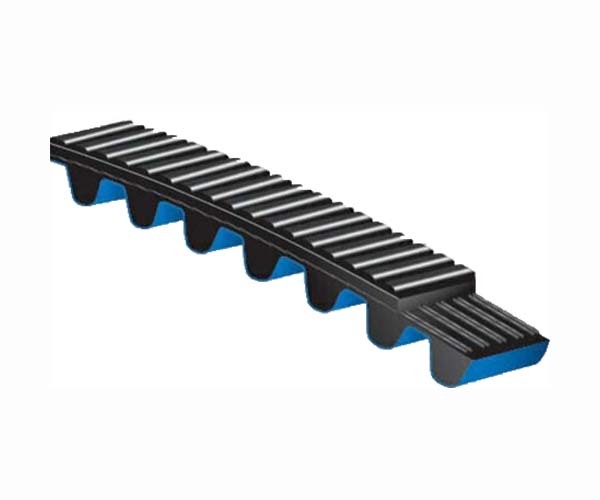

Gates Poly Chain GT Carbon Synchronous Belt

• Poly Chain GT Carbon, Gates most powerful synchronous belt, has been designed for optimum performance on high torque, low speed drives in any industrial application.
• Poly Chain GT Carbon belts operate on Poly Chain GT sprockets and do not require any adaptation of existing GT2 applications.
• Poly Chain GT Carbon belt construction is based on innovative state-of-the-art design.
• The body and teeth of the belt are made of a unique polyurethane compound, making the belt tough and virtually immune to abrasion and chemical attack.
• Ideal for washdown environments when used with Gates nickel plated or stainless steel hardware.

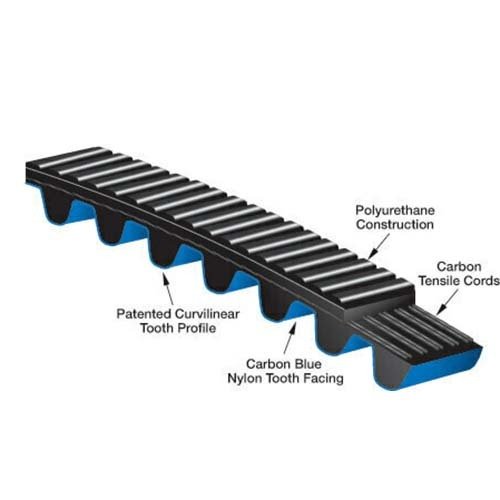

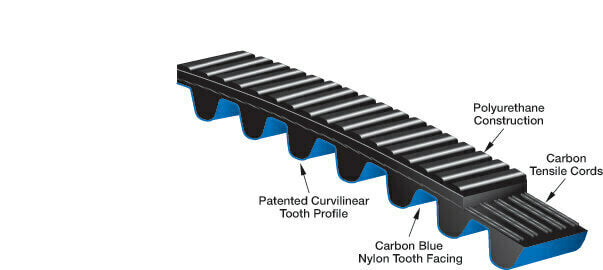

Construction

• Teeth and body are made of a lightweight polyurethane compound, specially blended for adhesion to the cords and fabric
• The carbon fibre tensile cords provide extraordinary power carrying capacity
• Flex fatigue life of carbon is exceptional, and its high impact strength withstands shocks and surge loading

Advantages

• Maintenance free
• 400% greater capacity than HTD belts
• 5% energy savings over V-belts
• 99% efficiency for life of the drive
• Cut maintenance and downtime
• Carbon cords easily handle shock loads
• Reduce weight and overhung loads
• Over 120,000 possible drive combinations
• Inert to most acids, chemicals and water
• No need for constant re-tensioning
• Excellent profile solver
• Back idlers can be used

Temperature Range

• Range: -54°C to + 85°C
