Gates Polyflex V-Belt 3, 3M265
Available

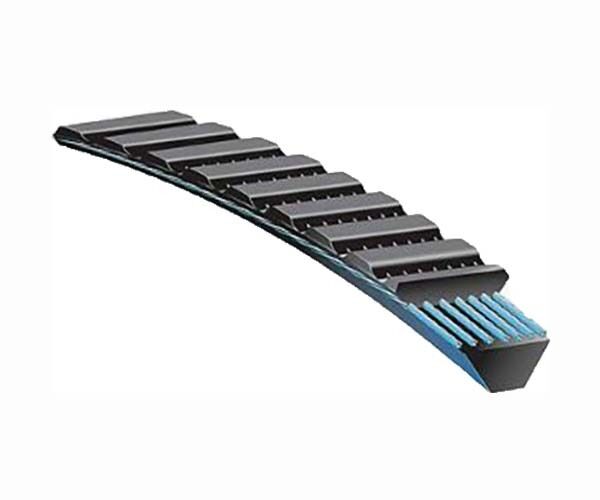

This is the Gates Polyflex V-Belt - 3M Section - Clearance.
Gates Polyflex is a ribbed-back, high-modulus polyurethane V-belt built for small, multiple-V-belt precision drives. It carries more load at higher speeds than a conventional rubber V-belt in the same space, with a precise cast construction (no layers or overlaps) for smooth, low-vibration running, items 8901-0265 to 8901-0280.
Where this product is used
- Bench-type milling machines, lathe drives and woodworking/metalworking machine spindle drives
- Computer peripheral equipment and small blowers
- Any multiple-V-belt precision drive needing more load capacity in a compact envelope
Features
- Design freedom and space savings which are not possible with conventional rubber construction belts
- Extremely smooth and cool running
- Low maintenance cost as belt needs less retensioning
- Long belt life on compact drives
- Back idlers can be used
- Smaller drive package
- Temperature Range
- Range: -54°C to +85°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 3M |
| Belt Series | Polyflex |
| Construction | High-modulus polyurethane body, ribbed backing for lateral stability, 60° angle construction for even load distribution |
| Available Stock Sizes (Gates range) | 7 to 30" |
| Temperature Range | -54°C (-65°F) to +82°C (+185°F) |
Choosing the right option
Select by cross-section (3M, 5M, 7M or 11M, the number is the top width in mm) and effective length. Gates Polyflex JB (joined) belts are the banded equivalent for multi-groove sheaves, giving matched-set performance without the strand-to-strand variation of separately-fitted singles.
| Option | Part number | SKU |
|---|---|---|
| 3M265 | 8901-0265 | CA0033435 |
| 3M280 | 8901-0280 | CA0033437 |
Product details
| Model | 8901-0265 |
|---|---|
| Part number | 8901-0265 |
| Option | 3M265 |
| Brand | Gates |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Polyflex V-Belt - 3M Section - Clearance: 3M265
SKU: CA0033435 | Model: 8901-0265
8901-0265: gates Polyflex V-Belt 3, 3M265.
