Gates Polyflex V-Belt 7, 7M1280
Available
This is the Gates Polyflex V-Belt - 7M Section - Clearance.

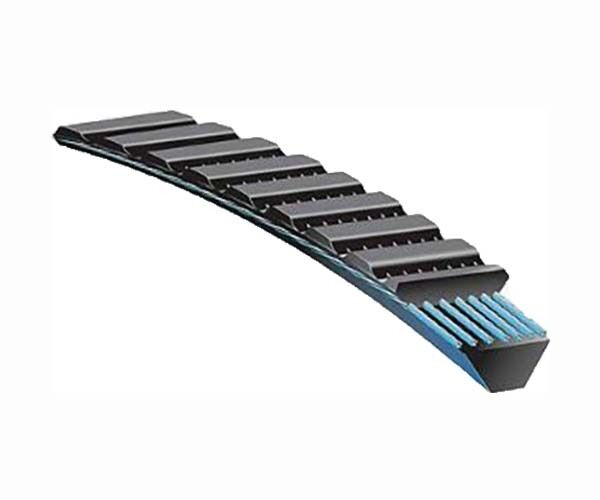

Gates Polyflex is a ribbed-back, high-modulus polyurethane V-belt built for small, multiple-V-belt precision drives. It carries more load at higher speeds than a conventional rubber V-belt in the same space, with a precise cast construction (no layers or overlaps) for smooth, low-vibration running, items 8903-0545 to 8903-1280.
Where this product is used
- Bench-type milling machines, lathe drives and woodworking/metalworking machine spindle drives
- Computer peripheral equipment and small blowers
- Any multiple-V-belt precision drive needing more load capacity in a compact envelope
Features
- Polyurethane body for chemical resistance
- Aramid tensile cord for high-load drives
- Wide operating speed range
- Low maintenance industrial service
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 7M |
| Belt Series | Polyflex |
| Construction | High-modulus polyurethane body, ribbed backing for lateral stability, 60° angle construction for even load distribution |
| Available Stock Sizes (Gates range) | 16 to 90" (JB: 16 to 91") |
| Temperature Range | -54°C (-65°F) to +82°C (+185°F) |
Choosing the right option
Select by cross-section (3M, 5M, 7M or 11M, the number is the top width in mm) and effective length. Gates Polyflex JB (joined) belts are the banded equivalent for multi-groove sheaves, giving matched-set performance without the strand-to-strand variation of separately-fitted singles.
| Option | Part number | SKU |
|---|---|---|
| 7M545 | 8903-0545 | CA0171016 |
| 7M1030 | 8903-1030 | CA0033560 |
| 7M1090 | 8903-1090 | CA0171018 |
| 7M1280 | 8903-1280 | CA0171011 |
Product details
| Model | 8903-0545 |
|---|---|
| Part number | 8903-0545 |
| Option | 7M545 |
| Brand | Gates |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Polyflex V-Belt - 7M Section - Clearance: 7M1280
SKU: CA0171011 | Model: 8903-1280
8903-1280: gates Polyflex V-Belt 7, 7M1280.
