Gates PoweRated Light Duty 4, length (inch) 22
Available

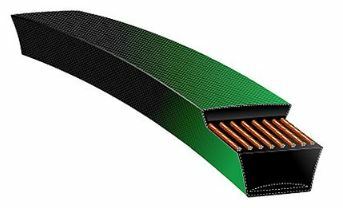

This is the Gates PoweRated Light Duty V Belt - 4L Section.
Gates PoweRated is a green textile-wrapped V-belt with an aramid tensile cord, designed as a higher-performance alternative to conventional light-duty belts, with more horsepower, less stretch and longer service life in the same fractional-horsepower (FHP) section, items 8423-6822 to 8423-8117.
Where this product is used
- Outdoor power equipment and small appliances built around FHP-section belts
- Light industrial drives, small pumps, fans and shock-loaded, backside-idler driven equipment
- General light-duty replacement wherever a 3L, 4L or 5L section belt is specified
Features
- Aramid tensile cord for shock-load resistance
- Specifically engineered for outdoor power equipment
- Resistance to clutching shock
- Bonded construction for extended life
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 4L |
| Belt Series | PoweRated, green textile-wrapped, aramid tensile cord |
| Construction | Bareback construction for smooth clutching on shock-loaded, backside-idler driven equipment, low cord positioning in a thin profile for extreme flexibility |
| Available Stock Sizes (Gates range) | 17 to 117" outside circumference |
| Standards | Meets ARPM/RMA IP-3-2 oil and heat resistance, REACH and RoHS 2 compliant |
| Temperature Range | -30°C (-22°F) to +60°C (+140°F) |
Choosing the right option
Select by section (3L, 4L or 5L, width increases with the number) then by outside circumference or the OE/existing belt part number. PoweRated's aramid cord gives it more stretch resistance and a longer service life than a conventional wrapped light-duty belt of the same section, a straightforward upgrade on a like-for-like replacement.
| Option | Part number | SKU |
|---|---|---|
| 22 | 8423-6822 | A0031538 |
| 23 | 8423-6823 | A0031539 |
| 25 | 8423-6825 | A0031541 |
| 26 | 8423-6826 | A0031542 |
| 27 | 8423-6827 | A0031543 |
| 28 | 8423-6828 | A0031544 |
| 29 | 8423-6829 | A0031545 |
| 30 | 8423-6830 | A0031546 |
| 31 | 8423-6831 | A0031547 |
| 32 | 8423-6832 | A0031548 |
| 33 | 8423-6833 | A0031549 |
| 34 | 8423-6834 | A0031550 |
| 35 | 8423-6835 | A0031551 |
| 36 | 8423-6836 | A0031552 |
| 37 | 8423-6837 | A0031553 |
| 38 | 8423-6838 | A0031554 |
| 39 | 8423-6839 | A0031555 |
| 40 | 8423-6840 | A0031556 |
| 41 | 8423-6841 | A0031557 |
| 42 | 8423-6842 | A0031558 |
| 43 | 8423-6843 | A0031559 |
| 44 | 8423-6844 | A0031560 |
| 45 | 8423-6845 | A0031561 |
| 46 | 8423-6846 | A0031562 |
| 47 | 8423-6847 | A0031563 |
| 48 | 8423-6848 | A0031564 |
| 49 | 8423-6849 | A0031565 |
| 50 | 8423-6850 | A0031566 |
| 51 | 8423-6851 | A0031567 |
| 52 | 8423-6852 | A0031568 |
| 53 | 8423-6853 | A0031569 |
| 54 | 8423-6854 | A0031570 |
| 55 | 8423-6855 | A0031571 |
| 56 | 8423-6856 | A0031572 |
| 57 | 8423-6857 | A0031573 |
| 58 | 8423-6858 | A0031574 |
| 59 | 8423-6859 | A0031575 |
| 60 | 8423-6860 | A0031576 |
| 61 | 8423-6861 | A0031577 |
| 63 | 8423-6863 | A0031579 |
| 64 | 8423-6864 | A0031580 |
| 65 | 8423-6865 | A0031581 |
| 66 | 8423-6866 | A0031582 |
| 67 | 8423-6867 | A0031583 |
| 68 | 8423-6868 | A0031584 |
| 69 | 8423-6869 | A0031585 |
| 70 | 8423-6870 | A0031586 |
| 71 | 8423-6871 | A0031587 |
| 72 | 8423-6872 | A0031588 |
| 73 | 8423-6873 | A0031589 |
| 74 | 8423-6874 | A0031590 |
| 75 | 8423-6875 | A0031591 |
| 76 | 8423-6876 | A0031592 |
| 77 | 8423-6877 | A0031593 |
| 78 | 8423-6878 | A0031594 |
| 79 | 8423-6879 | A0031595 |
| 80 | 8423-6880 | A0031596 |
| 81 | 8423-6881 | A0031597 |
| 82 | 8423-6882 | A0031598 |
| 83 | 8423-6883 | A0031599 |
| 84 | 8423-6884 | A0031600 |
| 85 | 8423-6885 | A0031601 |
| 86 | 8423-6886 | A0031602 |
| 87 | 8423-6887 | A0031603 |
| 88 | 8423-6888 | A0031604 |
| 89 | 8423-6889 | A0031605 |
| 90 | 8423-6890 | A0031606 |
| 91 | 8423-6891 | A0031607 |
| 92 | 8423-6892 | A0031608 |
| 93 | 8423-6893 | A0031609 |
| 94 | 8423-6894 | A0031610 |
| 95 | 8423-6895 | A0031611 |
| 96 | 8423-6896 | A0031612 |
| 97 | 8423-6897 | A0031613 |
| 98 | 8423-6898 | A0031614 |
| 99 | 8423-6899 | A0031615 |
| 100 | 8423-8100 | A0031693 |
| 117 | 8423-8117 | A0031697 |
Product details
| Model | 8423-6822 |
|---|---|
| Part number | 8423-6822 |
| Section | PoweRated light-duty (3L/4L/5L) |
| Material | Rubber compound with polyester tensile cord, fabric jacket |
| V-Belt Code | 6822 |
| Length (inch) | 22 |
| Depth (mm) | 8 |
| Top Width (mm) | 13 |
