Gates 6930 (8423-6930) PoweRated V Belt
Available

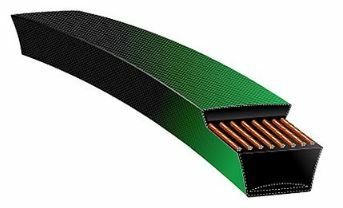

Gates PoweRated is a green textile-wrapped V-belt with an aramid tensile cord, designed as a higher-performance alternative to conventional light-duty belts — more horsepower, less stretch and longer service life in the same fractional-horsepower (FHP) section.
Where this product is used
PoweRated is an industrial fractional-horsepower belt, not an automotive belt. Typical applications include:
- Outdoor power equipment and small appliances built around FHP-section belts
- Light industrial drives — small pumps, fans and shock-loaded, backside-idler driven equipment
- General light-duty replacement wherever a 3L, 4L or 5L section belt is specified
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | 5L |
| Belt Series | PoweRated — green textile-wrapped, aramid tensile cord |
| Construction | Bareback construction for smooth clutching on shock-loaded, backside-idler driven equipment; low cord positioning in a thin profile for extreme flexibility |
| Available Stock Sizes (Gates range) | 23 to 100 in outside circumference |
| Standards | Meets ARPM/RMA IP-3-2 oil and heat resistance; REACH and RoHS 2 compliant |
| Temperature Range | -30°C (-22°F) to +60°C (+140°F) |
Selecting the right option
Select by section (3L, 4L or 5L — width increases with the number) then by outside circumference or the OE/existing belt part number. PoweRated’s aramid cord gives it more stretch resistance and a longer service life than a conventional wrapped light-duty belt of the same section — a straightforward upgrade on a like-for-like replacement. Contact AIMS if you need help identifying your section from a worn or unmarked belt.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
27
Model Number: 8423-6927
-
28
Model Number: 8423-6928
-
29
Model Number: 8423-6929
-
30
Model Number: 8423-6930
-
31
Model Number: 8423-6931
-
32
Model Number: 8423-6932
-
33
Model Number: 8423-6933
-
34
Model Number: 8423-6934
-
35
Model Number: 8423-6935
-
36
Model Number: 8423-6936
-
37
Model Number: 8423-6937
-
38
Model Number: 8423-6938
-
39
Model Number: 8423-6939
-
40
Model Number: 8423-6940
-
42
Model Number: 8423-6942
-
43
Model Number: 8423-6943
-
44
Model Number: 8423-6944
-
45
Model Number: 8423-6945
-
46
Model Number: 8423-6946
-
47
Model Number: 8423-6947
-
48
Model Number: 8423-6948
-
49
Model Number: 8423-6949
-
50
Model Number: 8423-6950
-
52
Model Number: 8423-6952
-
53
Model Number: 8423-6953
-
54
Model Number: 8423-6954
-
55
Model Number: 8423-6955
-
56
Model Number: 8423-6956
-
57
Model Number: 8423-6957
-
58
Model Number: 8423-6958
-
59
Model Number: 8423-6959
-
60
Model Number: 8423-6960
-
61
Model Number: 8423-6961
-
62
Model Number: 8423-6962
-
63
Model Number: 8423-6963
-
64
Model Number: 8423-6964
-
65
Model Number: 8423-6965
-
66
Model Number: 8423-6966
-
67
Model Number: 8423-6967
-
68
Model Number: 8423-6968
-
69
Model Number: 8423-6969
-
70
Model Number: 8423-6970
-
71
Model Number: 8423-6971
-
72
Model Number: 8423-6972
-
74
Model Number: 8423-6974
-
75
Model Number: 8423-6975
-
76
Model Number: 8423-6976
-
77
Model Number: 8423-6977
-
78
Model Number: 8423-6978
-
79
Model Number: 8423-6979
-
80
Model Number: 8423-6980
-
81
Model Number: 8423-6981
-
82
Model Number: 8423-6982
-
83
Model Number: 8423-6983
-
84
Model Number: 8423-6984
-
85
Model Number: 8423-6985
-
86
Model Number: 8423-6986
-
87
Model Number: 8423-6987
-
88
Model Number: 8423-6988
-
89
Model Number: 8423-6989
-
90
Model Number: 8423-6990
-
91
Model Number: 8423-6991
-
92
Model Number: 8423-6992
-
93
Model Number: 8423-6993
-
94
Model Number: 8423-6994
-
95
Model Number: 8423-6995
-
96
Model Number: 8423-6996
-
97
Model Number: 8423-6997
-
98
Model Number: 8423-6998
-
99
Model Number: 8423-6999
-
100
Model Number: 8423-9100
