Specifications +

Dimensions

Section: H
Pitch Length: 1905 mm
Pitch: 12.7 mm
Belt Width: 1.5 in
T: 2.29 mm
B: 4.0 mm
Teeth: 150

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

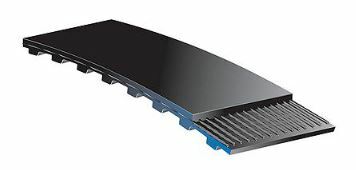

Gates PowerGrip Classical Synchronous Belt - H Section

SKU: A0023829

Type: Timing Belt

$29.70

Inc. GST

⚙Rubber & Carbon Cord

⚙PowerGrip Classical Synchronous Belt

📐Multiple Sizes Available

🔩Belt Drive Application

🏗Power Transmission & Drives

☑OEM Specification Design

Available

Product Highlights −

Descriptions

Gates classical synchronous PowerGrip® belt offers a maintenance free and economical alternative to conventional drives like chains and gears
Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc)

Construction

Trapezoidal tooth form
Precisely formed and accurately spaced elastomeric teeth ensure correct engagement in the pulley grooves
Fibreglass tensile cords
Tough nylon facing protects and reinforces the tooth surface
For MXL sizes and description, see pages 109

Advantages

Power Transmission of up to 150kW and speeds of up to 10,000 rpm
Peripheral speed up to 80 m/s
Positive slip-proof engagement
Constant angular velocity
Efficiencies up to 99%
Maintenance free
Wide range of load capacities and speed ratios
Back idlers can be used

Temperature Range

Range: -30¬∞C to +100¬∞C

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Specifications +

Dimensions

Section: H
Pitch Length: 1905 mm
Pitch: 12.7 mm
Belt Width: 1.5 in
T: 2.29 mm
B: 4.0 mm
Teeth: 150

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

240H075 / 24 / 48mm timing belt
Model Number: 9257-41024
240H100 / 24 / 48mm timing belt
Model Number: 9257-42024
240H150 / 24 / 48mm timing belt
Model Number: 9257-43024
270H300 / 27 / 54mm timing belt
Model Number: 270H300
270H100 / 27 / 54mm timing belt
Model Number: 9257-42027
270H150 / 27 / 54mm timing belt
Model Number: 9257-43027
300H300 / 30 / 60mm timing belt
Model Number: 300H300
300H075 / 30 / 60mm timing belt
Model Number: 9257-41030
300H100 / 30 / 60mm timing belt
Model Number: 9257-42030
300H200 / 30 / 60mm timing belt
Model Number: 9257-44030
330H100 / 33 / 66mm timing belt
Model Number: 9257-42033
330H150 / 33 / 66mm timing belt
Model Number: 9257-43033
330H300 / 33 / 66mm timing belt
Model Number: 9257-45033
360H100 / 36 / 72mm timing belt
Model Number: 9257-42036
360H150 / 36 / 72mm timing belt
Model Number: 9257-43036
360H200 / 36 / 72mm timing belt
Model Number: 9257-44036
390H100 / 39 / 78mm timing belt
Model Number: 9257-42039
390H150 / 39 / 78mm timing belt
Model Number: 9257-43039
390H200 / 39 / 78mm timing belt
Model Number: 9257-44039
415H150 / 41.5 / 83mm timing belt
Model Number: 415H150
420H100 / 42 / 84mm timing belt
Model Number: 9257-42042
420H150 / 42 / 84mm timing belt
Model Number: 9257-43042
440H100 / 44 / 88mm timing belt
Model Number: 9277-51020
450H100 / 45 / 90mm timing belt
Model Number: 9257-42045
450H150 / 45 / 90mm timing belt
Model Number: 9257-43045
450H200 / 45 / 90mm timing belt
Model Number: 9257-44045
480H100 / 48 / 96mm timing belt
Model Number: 9257-42048
480H150 / 48 / 96mm timing belt
Model Number: 9257-43048
510H100 / 51 / 102mm timing belt
Model Number: 9257-42051
510H150 / 51 / 102mm timing belt
Model Number: 9257-43051
520H200 / 52 / 104mm timing belt
Model Number: 520H200
540H100 / 54 / 108mm timing belt
Model Number: 9257-42054
540H150 / 54 / 108mm timing belt
Model Number: 9257-43054
560H200 / 56 / 112mm timing belt
Model Number: 9257-3435
570H200 / 57 / 114mm timing belt
Model Number: 9257-44057
570H300 / 57 / 114mm timing belt
Model Number: 9257-45057
600H100 / 60 / 120mm timing belt
Model Number: 9257-42060
600H150 / 60 / 120mm timing belt
Model Number: 9257-43060
600H200 / 60 / 120mm timing belt
Model Number: 9257-44060
600H300 / 60 / 120mm timing belt
Model Number: 9257-45060
630H200 / 63 / 126mm timing belt
Model Number: 9257-44063
630H300 / 63 / 126mm timing belt
Model Number: 9257-45063
660H150 / 66 / 132mm timing belt
Model Number: 9257-43066
700H150 / 70 / 140mm timing belt
Model Number: 9257-43070
750H100 / 75 / 150mm timing belt
Model Number: 9277-54876
750H150 / 75 / 150mm timing belt
Model Number: 9277-54877
1100H200 / 110 / 220mm timing belt
Model Number: 9257-3421
1250H100 / 125 / 250mm timing belt
Model Number: 9257-42125
1400H100 / 140 / 280mm timing belt
Model Number: 9257-42140
1700H200 / 170 / 340mm timing belt
Model Number: 1700H200
