Descriptions

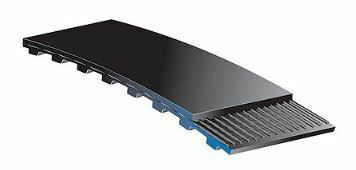

• Gates classical synchronous PowerGrip® belt offers a maintenance free and economical alternative to conventional drives like chains and gears
• Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc)

Construction

• Trapezoidal tooth form
• Precisely formed and accurately spaced elastomeric teeth ensure correct engagement in the pulley grooves
• Fibreglass tensile cords
• Tough nylon facing protects and reinforces the tooth surface
• For MXL sizes and description, see pages 109

Advantages

• Power Transmission of up to 150kW and speeds of up to 10,000 rpm
• Peripheral speed up to 80 m/s
• Positive slip-proof engagement
• Constant angular velocity
• Efficiencies up to 99%
• Maintenance free
• Wide range of load capacities and speed ratios
• Back idlers can be used

Temperature Range

• Range: -30°C to +100°C

Dimensions

• Section: XH
• Pitch Length: 2489.2 mm
• Pitch: 22.225 mm
• Belt Width: 5 in
• T: 6.35 mm
• B: 11.4 mm
• Teeth: 112
