Gates 1760-8MGT-12PK Micro-V Custom
Out of stock
Gates Micro-V Custom Backed belts are standard PowerGrip synchronous timing belts with a Micro-V ribbed backing added to the outside — letting you drive a second pulley off the back of the belt while the front teeth keep a shaft in sync. Construction follows Gates’ standard PowerGrip synchronous belt build: neoprene body for protection against grime, grease, oil and moisture, fibreglass tensile cords, and a tough nylon facing on the tooth surface.
Where this product is used
Micro-V Custom Backed belts are a specialised synchronous belt, not an automotive timing belt. Typical uses include:
- Dual-output drives needing one pulley on the front teeth and a second pulley off the back of the belt — flour mill and vacuum cleaner designs are classic examples
- Drives where the Micro-V backing needs to slip under shock load while the front-tooth drive stays in sync
- Applications wanting no re-tensioning and no lubrication, the same as a standard PowerGrip synchronous belt
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | 8MGT |
| Tooth Profile | GT (curvilinear) |
| Pitch | 8 mm |
| Ribs on Back (Micro-V) | 12 (standard 8MGT configuration) |
| Belt Width | 42.72 mm |

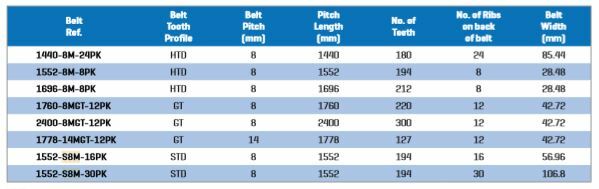

| Pitch Length | Reference-dependent — confirm with AIMS (e.g. 1760 mm/220 teeth or 2400 mm/300 teeth) |
| Construction | Neoprene body; fibreglass tensile cords; nylon tooth facing |
| Brand | Gates |
Selecting the right option
Select by belt reference — pitch length, section and rib count (e.g. 1552-S8M-30PK = 1552 mm pitch length, S8M section, 30 ribs on the Micro-V back) — to match your drive exactly. This is a specialised, lower-volume belt that most competitors don’t stock. Contact AIMS to confirm availability and lead time for your reference.
