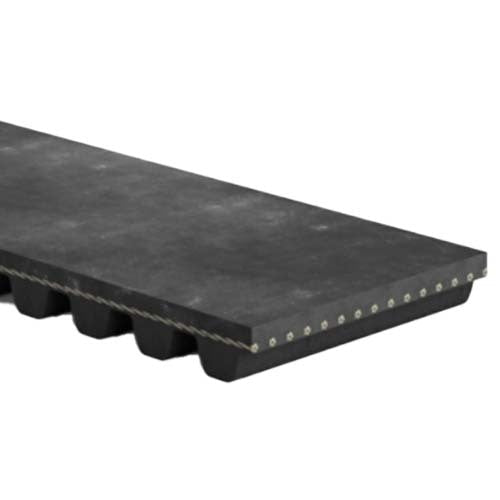

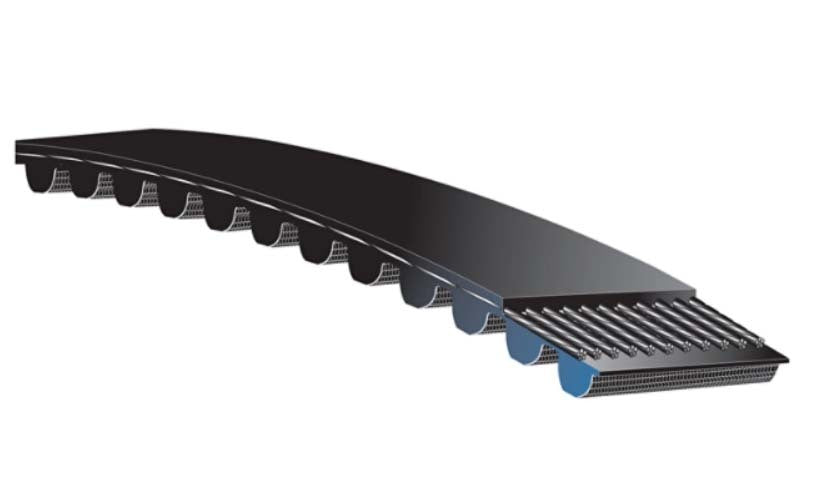

Gates PowerGrip GT3 Timing GT3, 537-3MGT-09

This is the Gates PowerGrip GT3 Timing Belt - 3MGT Section.

The Gates PowerGrip GT3 3MGT section synchronous belt features a modified curvilinear tooth profile for smooth, low-noise engagement and high positional accuracy. It is the standard industrial synchronous belt for precision drives in automation, robotics and packaging machinery, items 9400-53320 to 537-3MGT-09.

Where this product is used

• Hand tools, business machines and domestic appliances
• High-precision servomotor drives and automation/robotics equipment
• New drive designs and performance upgrades on existing roller-chain or timing-belt drives

Features

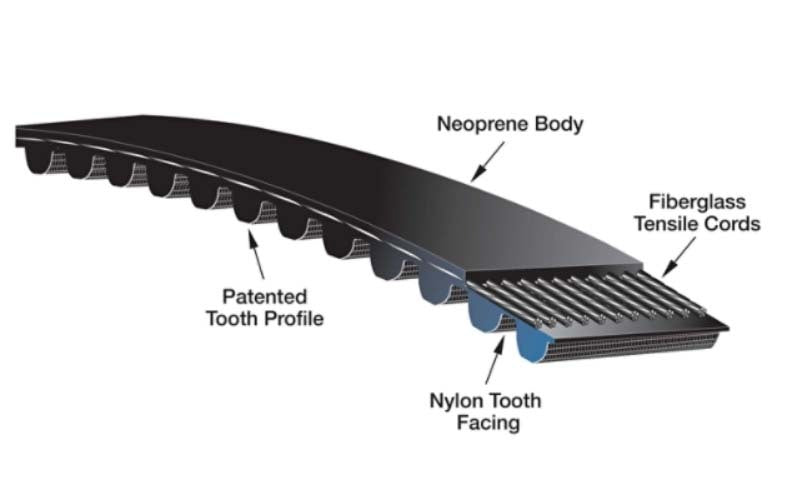

• Fibreglass tensile cord for high strength, good flex life and low elongation
• Elastomeric (neoprene) teeth and body backing resist grime, grease, oil and moisture
• Nylon tooth facing for wear durability
• No lubrication required
• High resistance to tooth jump/ratcheting, and quieter running than alternatives
• Rated at roughly twice the capacity of competitive RPP belts and earlier designs
• Available across 2MGT, 3MGT, 5MGT, 8MGT and 14MGT pitches on GT-profile pulleys

Key specifications

Choosing the right option

Select by pitch (2MGT/3MGT/5MGT for GT3; 3M/5M/8M/14M/20M for HTD) and belt width to suit your drive, or cross-reference by pitch length + pitch + width (e.g. 600-5MGT-15 = 600mm pitch length, 5MGT pitch, 15mm wide). See our Poly Chain GT Carbon range.
