Gates PowerGrip GT3 Timing GT3, 2600-8MGT-30
Available

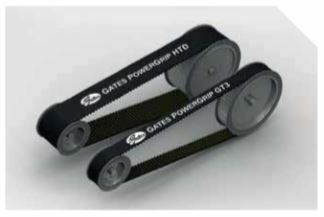

This is the Gates PowerGrip GT3 Timing Belt - 8MGT Section.

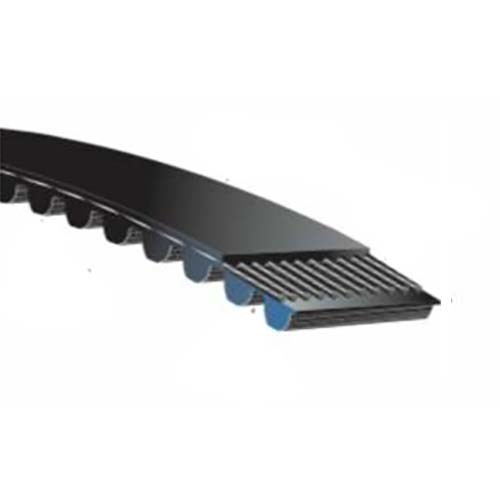

The Gates PowerGrip GT3 8MGT section synchronous belt features a modified curvilinear tooth profile for smooth, low-noise engagement and high positional accuracy. It is the standard industrial synchronous belt for precision drives in automation, robotics and packaging machinery, items 2400-8MGT-85 to 2600-8MGT-30.
Where this product is used
- Hand tools, business machines and domestic appliances
- High-precision servomotor drives and automation/robotics equipment
- New drive designs and performance upgrades on existing roller-chain or timing-belt drives
Features
- Zero-slip positive drive
- Fibreglass tensile cord for stretch resistance
- Compatible with matching Gates pulleys
- Industrial-grade synchronous transmission
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 8MGT |
| Series | PowerGrip GT3, optimised GT tooth profile synchronous belt |
| Drive Type | Industrial Synchronous |
| Construction | Fibreglass tensile cord, neoprene body resists grime, grease, oil and moisture, nylon tooth facing |
| Temperature Range | -30°C (-22°F) to +100°C (+212°F) |
Choosing the right option
Select by pitch (2MGT/3MGT/5MGT for GT3; 3M/5M/8M/14M/20M for HTD) and belt width to suit your drive, or cross-reference by pitch length + pitch + width (e.g. 600-5MGT-15 = 600mm pitch length, 5MGT pitch, 15mm wide). See our Poly Chain GT Carbon range.
| Option | Part number | SKU |
|---|---|---|
| 2400-8MGT-85 | 2400-8MGT-85 | A0027008 |
| 2600-8MGT-30 | 2600-8MGT-30 | A0027014 |
Product details
| Model | 2400-8MGT-85 |
|---|---|
| Part number | 2400-8MGT-85 |
| Timing Belt Code | 2400-8MGT-85 |
| Pitch (mm) | 8 |
| Depth (mm) | 5.6 |
| Number of Teeth | 300 |
| Teeth Depth (mm) | 3.4 |
| Belt Width (mm) | 85 |
| Length (mm) | 2400 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates PowerGrip GT3 Timing Belt - 8MGT Section: 2600-8MGT-30
SKU: A0027014
Part No: 2600-8MGT-30. Timing Belt Code: 2600-8MGT-30. Pitch (mm): 8.
