Descriptions

• PowerGrip® HTD® 8M and 14M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.
• PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, once machines, electric hand tools and for applications in the processing and chemical industry.

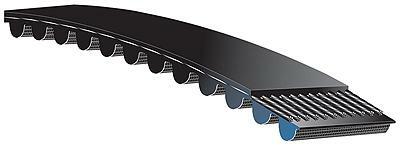

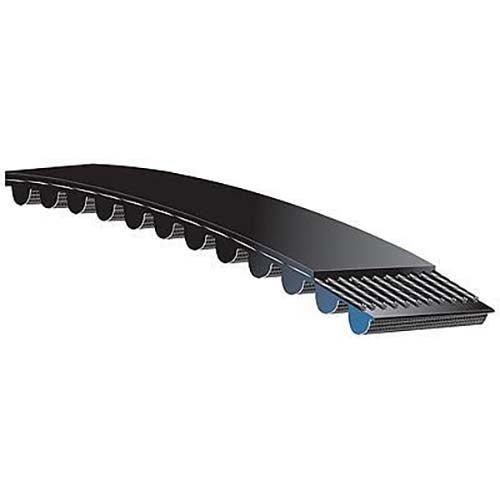

Construction

• Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
• Fibreglass tensile cords
• Tough nylon facing protects and reinforces the tooth surface
• Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt

Advantages

• No slippage. PowerGrip® HTD® belt teeth mesh smoothly with pulley grooves, reducing speed variations
• Wide speed range, 3M and 5M are designed for belt speeds up to 80m/s
• Constant angular velocity
• Economical operation. No lubrication needed, no need for adjustment due to stretch and wear.
• High mechanical efficiency. The belt construction minimises heat build-up and since friction is not required to transmit the load, belt tensions are reduced
•  Most 14M PowerGrip® HTD® belts now meet the ISO 9563 static conductive standard
• Maintenance free
• Back idlers can be used

Temperature Range

• Range: -30¬∞C to +100¬∞C

Dimensions

• Section: 8M
• Pitch Length: 960 mm
• Pitch: 8 mm
• Belt Width: 50 mm
• T: 3.4 mm
• B: 6 mm
• Teeth: 120
