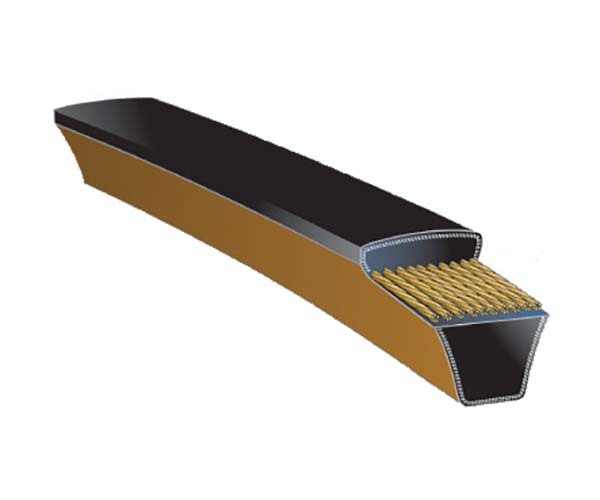

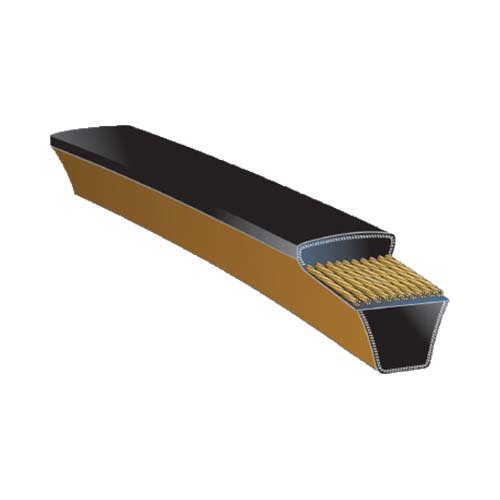

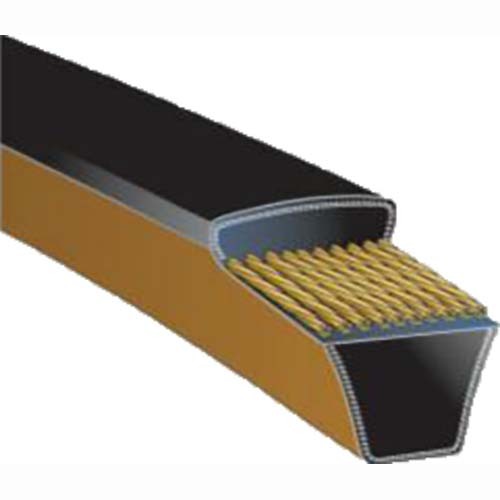

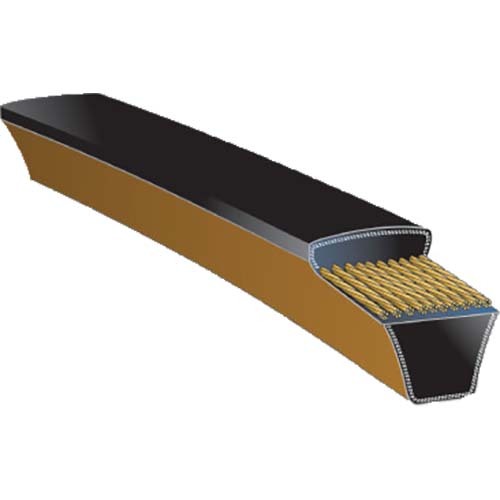

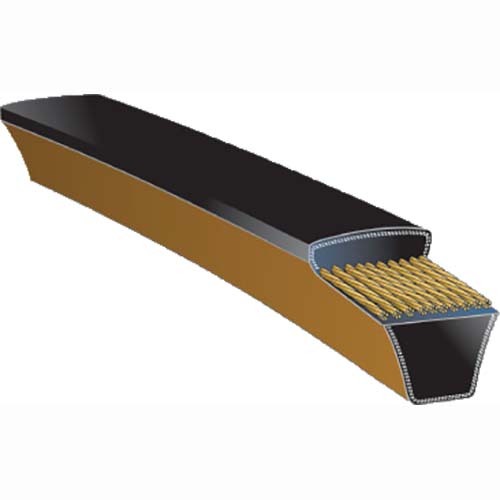

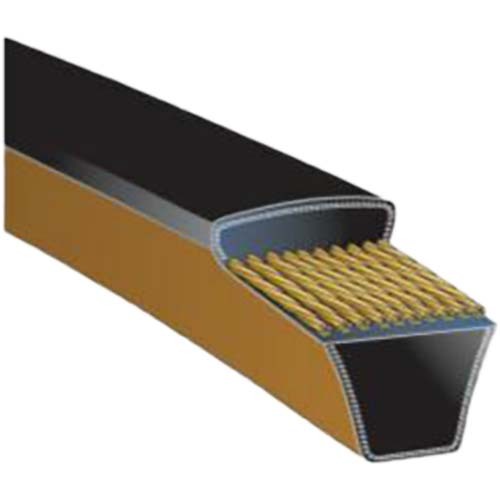

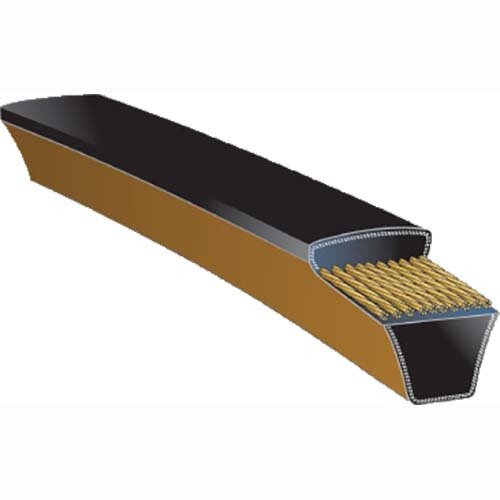

Predator Heavy Duty, Wrapped, Aramid Cord V Belt

• Gates Predator V-belts are the markets leading V-belts.
• They are unique and unrivalled in their extreme robustness and high load carrying capability.
• They are excellent problem solvers that perform well in harsh environments and in extremely demanding applications where standard V-belts have performance issues.
• The Predator difference is in the construction: having the highest offer density of any V-belt and half the stretch of standard Gates belts because of the use of high strength, high modulus aramid tensile cords.

About Predator Matching System

• Predator belts have a matching system which must be used on multiple belt drives.
• This applies to both Single and Powerband versions of Predator belts.
• Predator belts are marked with a match/group number between 46 to 54 and each belt on a drive must have the same match/ group number.
• Each matching number refers to a length tolerance range.
• The limited stretch characteristic of the Predator belts makes it necessary to match them in this way.
• If matched belts are not used then it will severely impact performance and life.

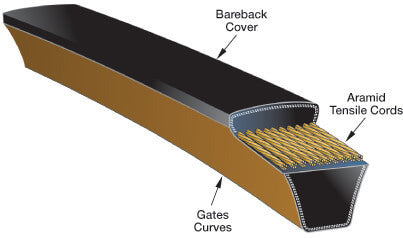

Construction

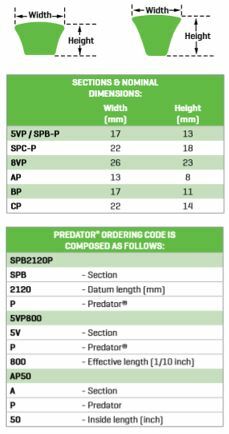

• Classical and Narrow cross-sections.
• Flex bonded aramid tensile cords.
• Double layer bare back fabric cover.
• Fibre-loaded compound for improved belt stability.
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life.
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.

Advantages

• Maintenance free
• Up to 2.2 times more offer than standard V-belts
• Aramid tensile cords easily handle shock loads
• Up to 35% reduced drive cost
• Up to 67% reduced drive width
• Up to 50% reduced drive weight
• Double layer bare back cover protects against slippage and punctures
• No increase in shaft load
• Replace MTO 8V pulleys with standard SPC pulleys
• Reduce overhung loads
• No need for constant re-tensioning
• Excellent problem solver
• Back idlers can be used.

Temperature Range

• Range: -35°C to +80°C
