Gates Predator Narrow Section 5, 5VP800
Available

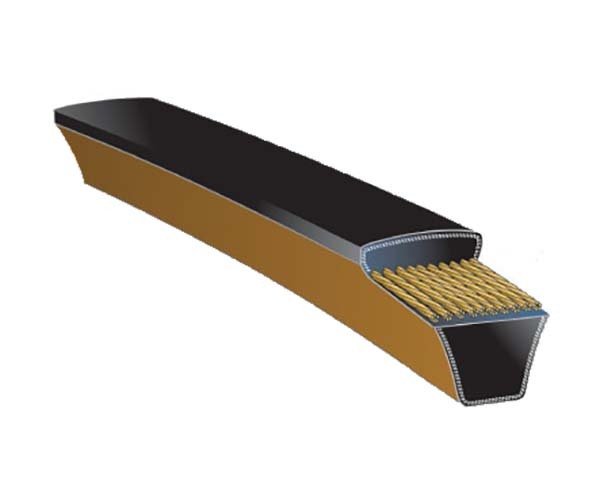

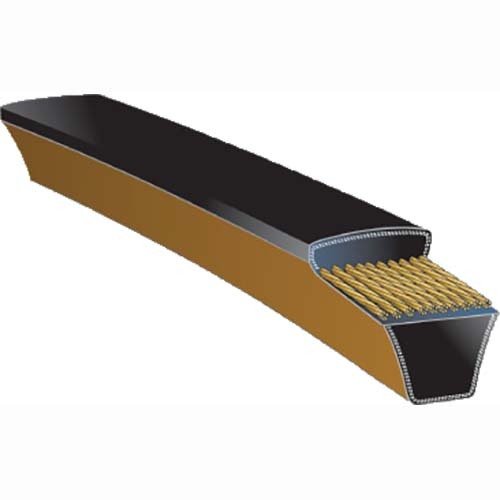

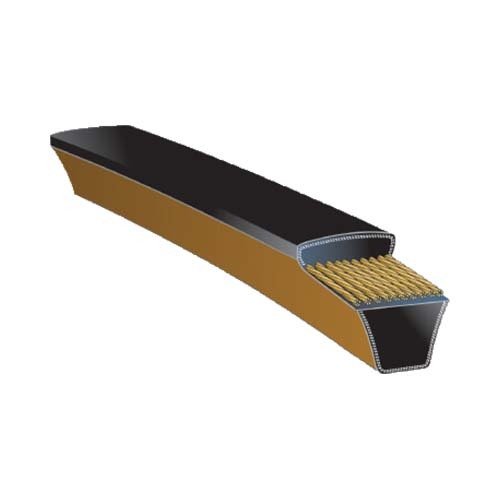

This is the Gates Predator Narrow Section V Belt - 5V Section.
The Gates Predator 5V section is a premium narrow V-belt designed for the most demanding industrial drives. Predator belts deliver higher power ratings in the same drive envelope as standard belts, reducing the number of belt strands required and cutting drive operating costs, items 9188-0080 to 9188-0355.
Where this product is used
- Mining, quarrying and heavy construction plant subject to pulsating or heavy shock loads, crushers, screens and conveyors
- Agriculture and forestry, including wood processing machinery
- Oil field equipment and sand/gravel operations
Features
- Aramid tensile cords deliver high strength, durability and virtually zero stretch
- Double fabric cover resists abrasion and wear
- Oil- and heat-resistant rubber compounds
- Non-rubber bare back allows momentary overload slippage without damaging the belt
- Static conductive (ISO 1813), suitable for ATEX 2014/34/EU environments
- REACH and RoHS 2 compliant
- Less need for re-tensioning compared with standard V-belts
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 5V |
| Series | Predator, Gates' heavy-duty, wrapped aramid-cord V-belt, up to 2.2x the power density of a standard V-belt in the same drive envelope |

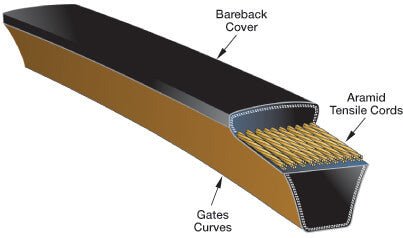

| Construction | Wrapped, aramid-cord V-belt. Flex-bonded aramid tensile cords are pound-for-pound stronger than steel and combine limited stretch with extraordinary strength and durability, giving roughly half the stretch of a standard polyester-cord Gates belt for markedly higher power density and easy handling of shock loads. Double-layer bareback cover protects against slippage and punctures, resists debris, and allows the belt to slip under extreme shock-load conditions without excessive heat buildup, prolonging belt life. Gates Curves profile gives proper cord support and full contact with the sheave groove for equal loading, uniform wear and increased belt life. Premium rubber compound, non-self-igniting |

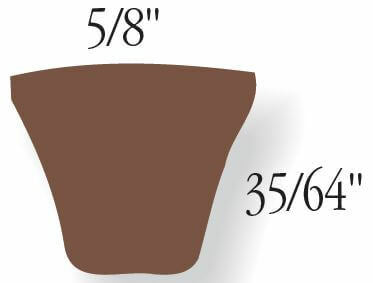

| Nominal Dimensions (Width x Height) | 17 x 13mm |
| Temperature Range | -35°C to +80°C |
| Performance | Up to 2.2x more power than a standard V-belt of the same section, up to 67% reduced drive width, up to 50% reduced drive weight, up to 35% reduced drive cost versus a standard-belt drive of equivalent power, no increase in shaft load, reduces overhung loads, lets a standard SPB/SPC pulley replace a costly made-to-order 8V belt-drive pulley (Gates) |
Choosing the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric), cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands, specify these for long centre distances, vertical drives or where belt whip is an issue. Automotive Micro-V drives use the K section, see our automotive Micro-V range and match by OE reference or by rib count and pitch length.
| Option | Part number | SKU |
|---|---|---|
| 5VP800 | 9188-0080 | A0019108 |
| 5VP850 | 9188-0085 | A0019109 |
| 5VP900 | 9188-0090 | A0019110 |
| 5VP950 | 9188-0095 | A0019111 |
| 5VP1000 | 9188-0100 | A0019112 |
| 5VP1060 | 9188-0106 | A0019113 |

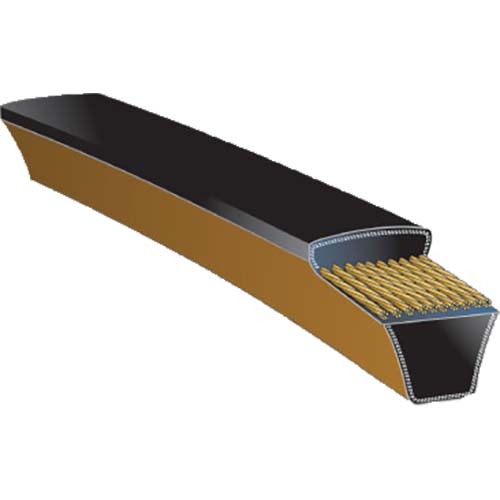

| 5VP1120 | 9188-0112 | A0019114 |
| 5VP1180 | 9188-0118 | A0019115 |
| 5VP1500 | 9188-0150 | A0019119 |
| 5VP1900 | 9188-0190 | A0019123 |
| 5VP2000 | 9188-0200 | A0019124 |
| 5VP3550 | 9188-0355 | A0019134 |
Product details
| Model | 9188-0080 |
|---|---|
| Part number | 9188-0080 |
| Belt Code | 5VP800 |
| Length (inch) | 80 |
| Depth (mm) | 13 |
| Top Width (mm) | 17 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Predator Narrow Section V Belt - 5V Section: 5VP800
SKU: A0019108 | Model: 9188-0080
9188-0080: gates Predator Narrow Section 5, 5VP800. Belt Code: 5VP800. Length (inch): 80.
