• Quad-Power 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
• Extensive testing has shown that Gates Quad-Power 4 V-belts offer up to 50% higher offer ratings than the wrapped Super HC.
• The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C.

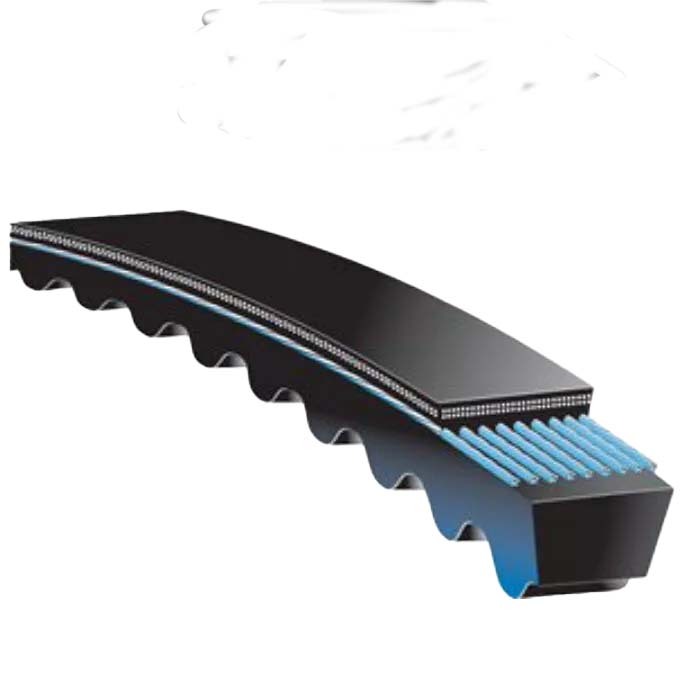

Construction

• Notch depth is in proportion to the cross-section to ensure perfect stability
• Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
• Enhanced blue adhesion layer increases tensile cord bond
• Double Flex-Weave textile backing protects the belt against wear – especially when back idlers are used
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Temperature Range

• Range: -50°C to +130°C

Dimensions

• Section: XPB
• Width: 17 mm
• Height: 13 mm
• Datum Length: 4815 mm

Advantages

• No re-tensioning required
• Reduce wrapped belt drive width up to 50%
• Increase efficiency up to 3% offer wrapped belts
• Use smaller diameter pulleys than wrapped belts
• Moulded notches reduce and evenly distributed thermal and bending stresses
• Reduce drive maintenance
• Match free system: all sizes meet Gates UNISET & V80 tolerances, can be installed without matching
• Back idlers can be used
