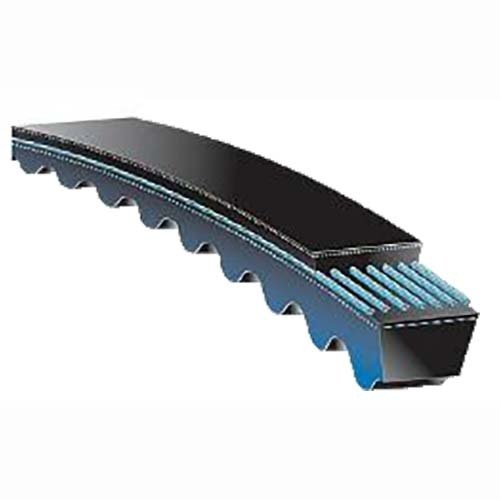

Gates QuadPower 4 Notch Belt Narrow Section - XPZ Section

• Quad-Power 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
• Extensive testing has shown that Gates Quad-Power 4 V-belts offer up to 50% higher power ratings than the wrapped Super HC.
• The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C.

Construction

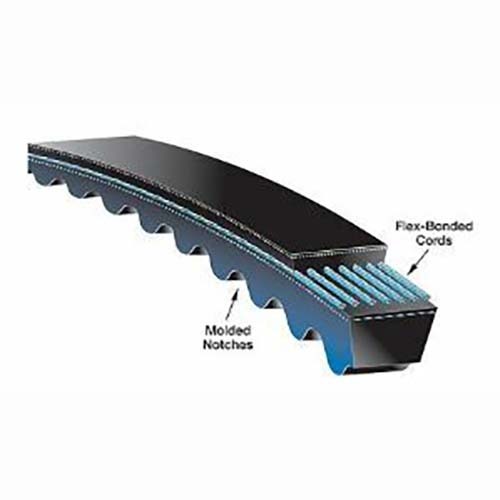

• Notch depth is in proportion to the cross-section to ensure perfect stability
• Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
• Enhanced blue adhesion layer increases tensile cord bond
• Double Flex-Weave textile backing protects the belt against wear – especially when back idlers are used
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Temperature Range

• Range: -50°C to +130°C
