• Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the offer of the classical cross-sections (A, B, C & D) in the same amount of drive space
• Super HC also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and offer capacity are critical.
• Designed for heavy industry and the harsh demands of the mining market, Super HC is Gates most popular V-belt construction

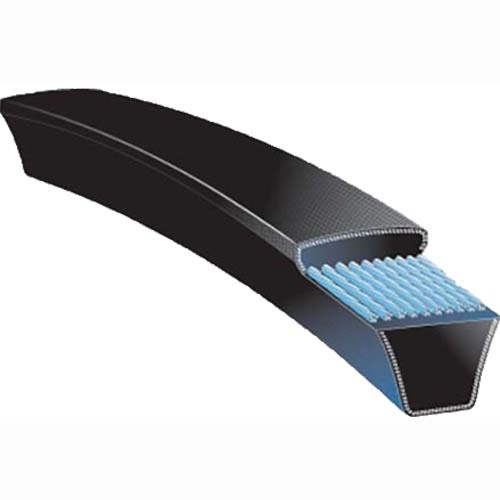

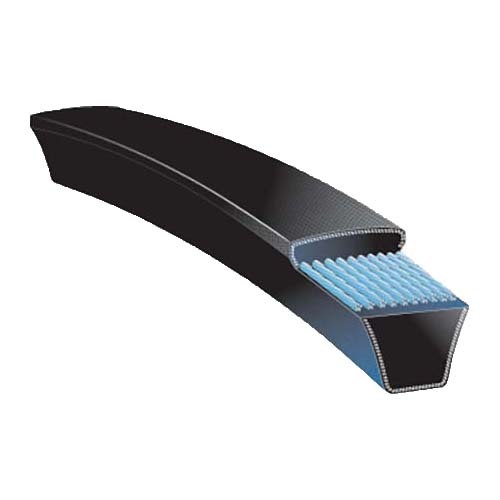

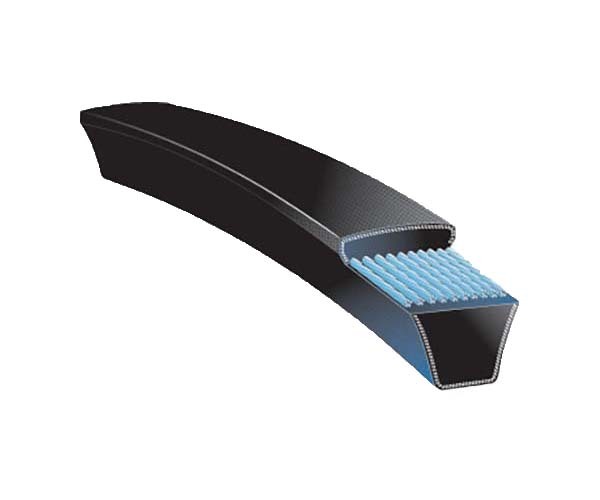

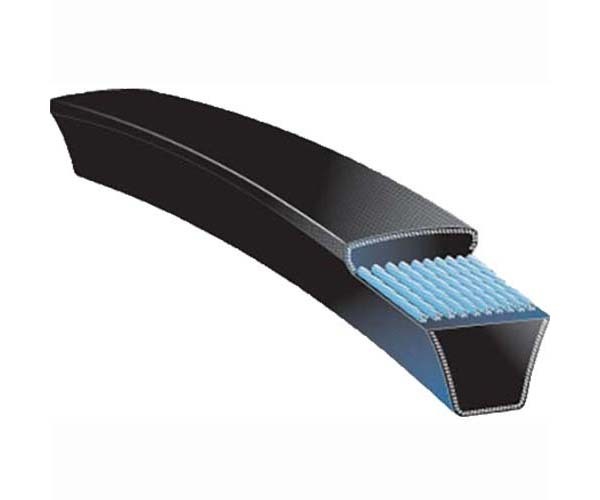

Construction

• Narrow cross-section
• Fibre-loaded compound for improved belt stability

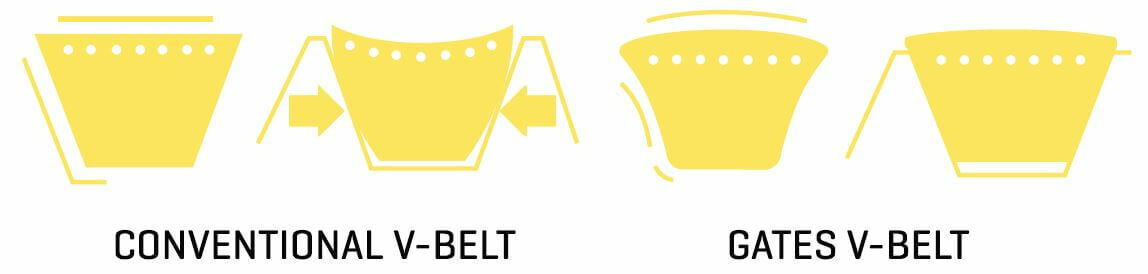

• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Temperature Range

• Range: -35°C to +80°C

Section: 3V

• Top Width: 10 mm
• Depth: 8 mm
• Effective Length: 315 (1/10-inch)

Advantages

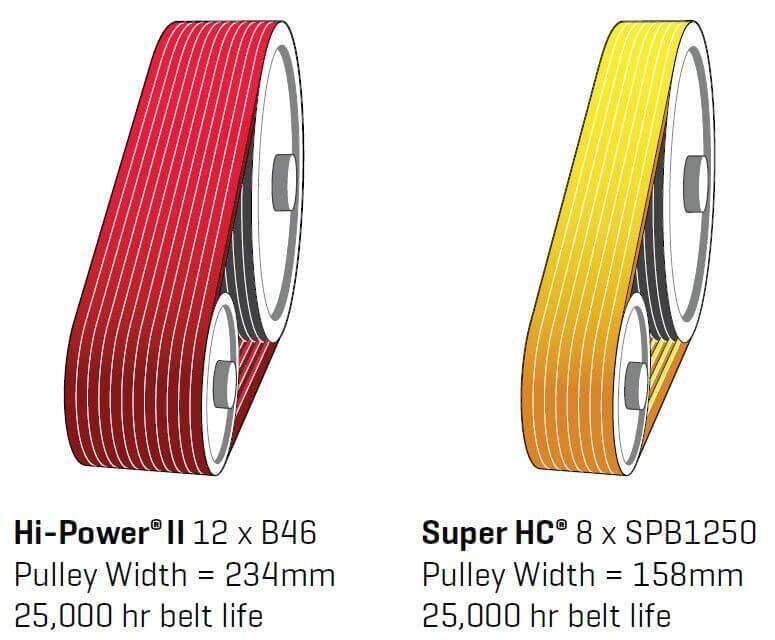

• Up to 3 times more offer in the same space or same offer in 1/3 to 1/2 less space than classical belts
• Cost and space savings
• Longer belt life
• Suitable for dirty/dusty environments
• Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
• Back idlers can be used
• Tolerates mild clutching or drive slip
