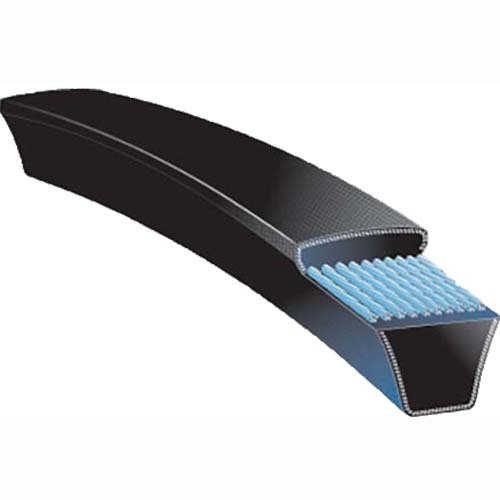

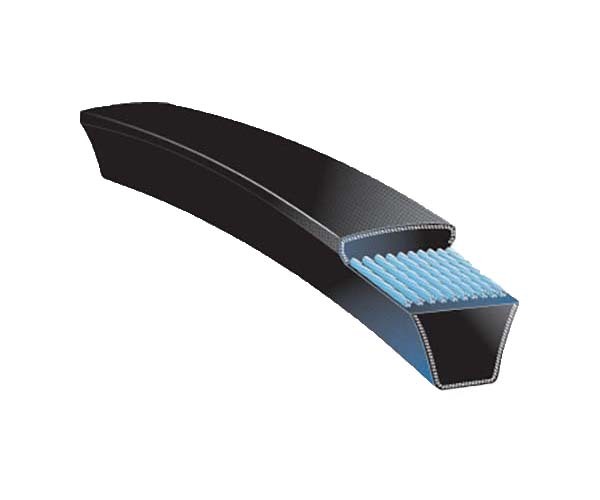

Descriptions

• Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the power of the classical cross-sections (A, B, C & D) in the same amount of drive space
• Super HC® also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and power capacity are critical.
• Designed for heavy industry and the harsh demands of the mining market, Super HC® is Gates most popular V-belt construction

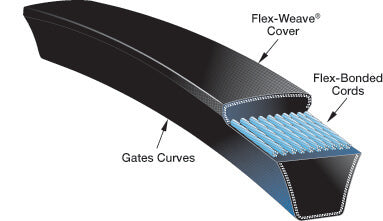

Construction

• Narrow cross-section
• Fibre-loaded compound for improved belt stability
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Up to 3 times more power in the same space or same power in 1/3 to 1/2 less space than classical belts
• Cost and space savings
• Longer belt life
• Suitable for dirty/dusty environments
• Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
• Back idlers can be used
• Tolerates mild clutching or drive slip

Temperature Range

• Range: -35¬∞C to +80¬∞C

Dimensions

• Section: SPA
• Width: 13 mm
• Height: 10 mm
• Datum Length: 4250 mm
