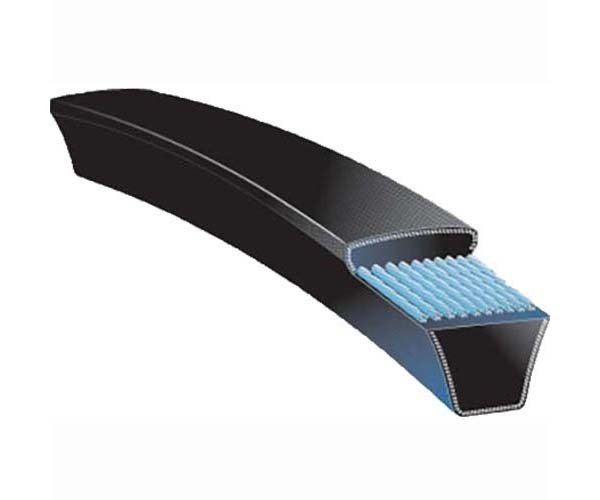

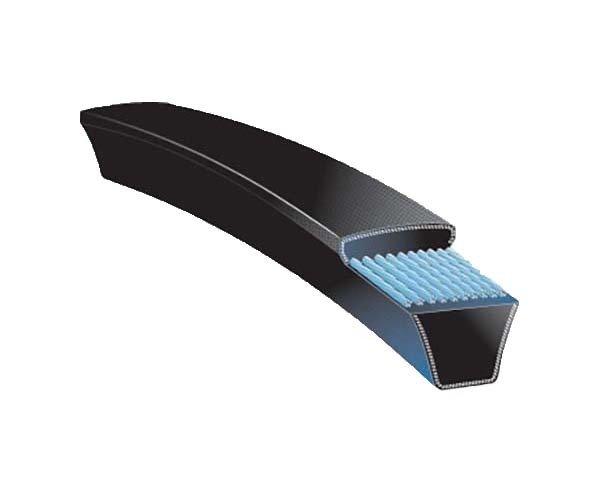

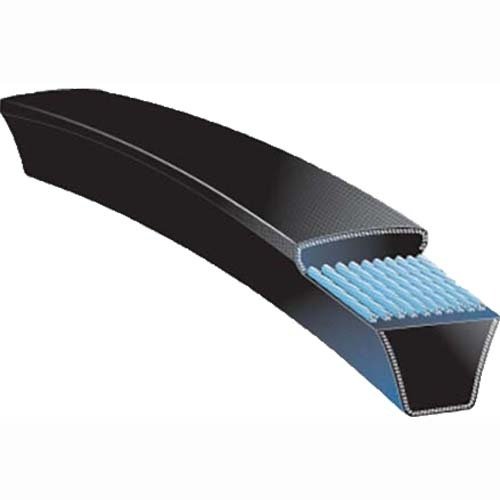

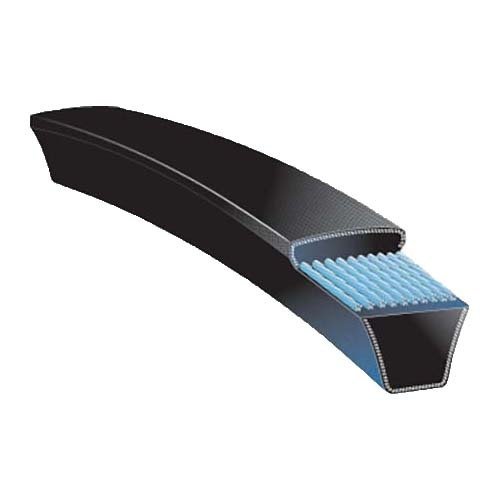

• Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the power of the classical cross-sections (A, B, C & D) in the same amount of drive space.
• Gates Super HC also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and power capacity are critical.
• Designed for heavy industry and the harsh demands of the mining market, Super HC is Gates most popular V Belt construction.

Construction

• Narrow cross-section.
• Fibre-loaded compound for improved belt stability.

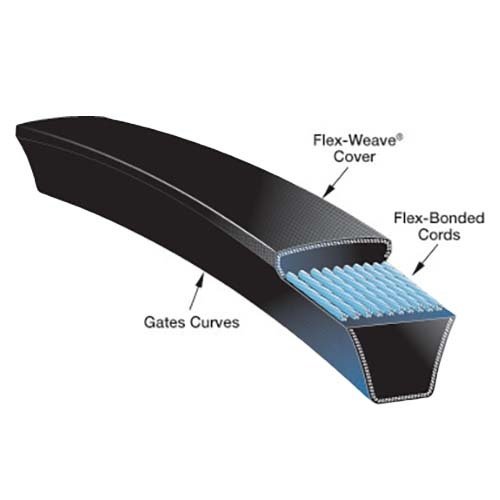

• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life.
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
• Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat.
• Non-self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
• Static conductive - ISO 1813 and RMA IP3-3.

Temperature Range

• -35°C to +80°C

AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor

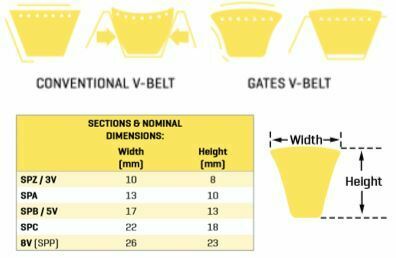

• Top Width: 10mm
• Depth: 8mm
• Length: Measured in millimetres according to the Datum Length in millimetres as designated by the Product name – eg. an SPZ800 has a Datum Length of 800mm.  Refer to Gates’ Product Catalogue for further details.

Advantages

• Up to 3 times more power in the same space or same power in 1/3 to 1/2 less space than classical belts.
• Cost and space savings.
• Longer belt life.
• Suitable for dirty/dusty environments.
• Match free system: all sizes meet Gates V80® tolerances, can be installed without matching.
• Back idlers can be used.
• Tolerates mild clutching or drive slip.
