Gates Synchro-Power Polyurethane Belt AT5 7762-50751
Out of stock
This is the Gates Synchro-Power Polyurethane Belt - AT5 Section.
Gates Synchro-Power is a polyurethane synchronous belt for long-lasting, energy-efficient power transmission and linear-motion drives, available as truly endless belts (no joint) or as open-end rolls that are cut to length on site, items 7762-50751 to 7762-50973.
Where this product is used
- Power transmission drives needing a clean-running, no-lubrication belt
- Linear motion and positioning drives, using open-end belt cut to length on site
- Food, pharmaceutical and other clean-running environments where a polyurethane belt outperforms rubber
Features
- Zero-slip synchronous drive keeps timing exact with no belt creep
- Polyurethane body construction for long service life
- Aramid (Kevlar) reinforcement adds tensile strength and durability
- Trapezoidal tooth profile locks in securely with compatible pulleys
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | AT5 |
| Belt Series | Synchro-Power, polyurethane synchronous belt |
| Construction | Abrasion-resistant polyurethane body, no-joint endless construction or open-end rolls |
| Available Forms | Endless (pitch lengths to 2250mm) or open-end rolls (to 100 m) |
| Temperature Range | -30°C (-22°F) to +80°C (+176°F) |
Choosing the right option

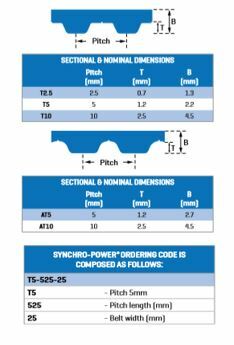

Select by pitch section (AT5, AT10, T5 or T10, the number is the pitch in mm) and belt width or roll length to suit your drive. Endless belts suit fixed power transmission drives (pitch lengths up to 2250mm); open-end rolls (up to 100 m) suit linear and positioning applications cut to length on site.
| Option | Part number | SKU |
|---|---|---|
| 10 | 7762-50751 | A0030174 |
| 25 | 7762-50973 | A0030220 |
Product details
| Model | 7762-50751 |
|---|---|
| Part number | 7762-50751 |
| Timing Belt Code | AT5-750-10 |
| Pitch (mm) | 5 |
| Depth (mm) | 2.7 |
| Number of Teeth | 150 |
| Teeth Depth (mm) | 1.2 |
| Belt Width (mm) | 10 |
| Length (mm) | 750 |
