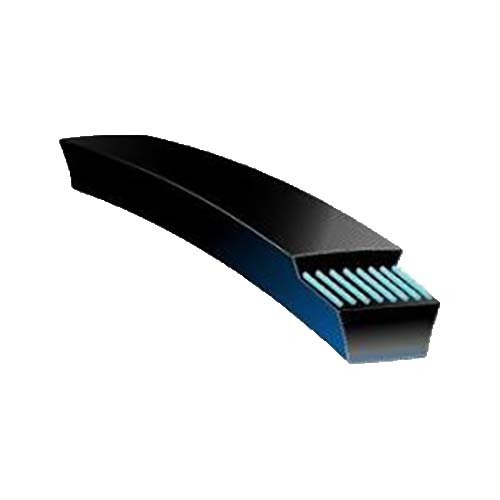

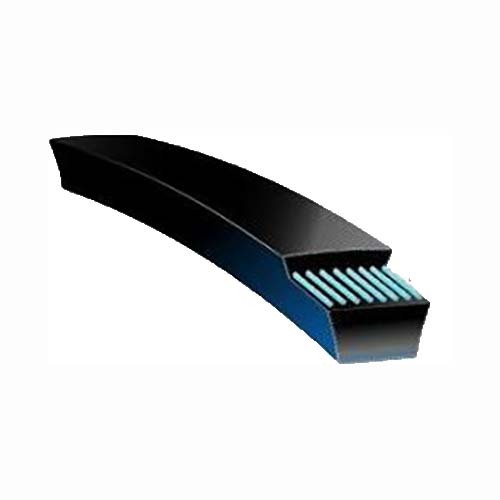

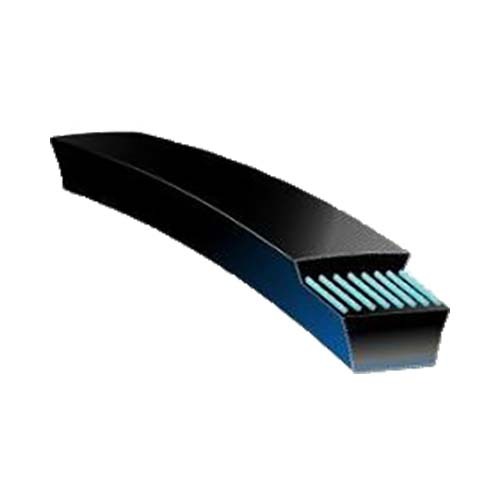

Gates 2L120 Truflex Light Duty V Belt
Available
Gates Truflex is a light-duty, wrapped fractional-horsepower (FHP) V-belt built for small drives that don’t need a heavy-duty section — auxiliary automotive drives (electric windows, wiper motors, central locking) as well as light industrial and domestic FHP equipment.
Where this product is used
Truflex is a fractional-horsepower belt, not a heavy-duty industrial or agricultural section. Typical applications include:
- Auxiliary automotive drives — electric windows, wiper motors and central locking systems
- Small pumps, fans, power tools and domestic appliances built around FHP-section belts
- Backside-idler drives, where Truflex’s low cord positioning improves performance
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | 2L |
| Belt Series | Truflex — light-duty, wrapped FHP V-belt |
| Available Stock Sizes (Gates range) | 10 to 46 in outside circumference |
| Construction | Gates Curves for uniform sheave-groove loading; Flex-Bonded cords; Flex-Weave oil- and heat-resistant cover |
| Standards | Meets ARPM/RMA IP-3-2 oil and heat resistance; ARPM/RMA IP-3-3 static conductivity; REACH and RoHS 2 compliant |
| Temperature Range | -30°C (-22°F) to +60°C (+140°F) |
Selecting the right option
Select by section (2L, 3L, 4L or 5L — width increases with the number) then by outside circumference or the OE/existing belt part number. Contact AIMS if you need help identifying your section from a worn or unmarked belt.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
12
Model Number: 8400-0120
-
20
Model Number: 8400-0200
-
28
Model Number: 8400-0280
-
29
Model Number: 8400-0290
-
31
Model Number: 8400-0310
