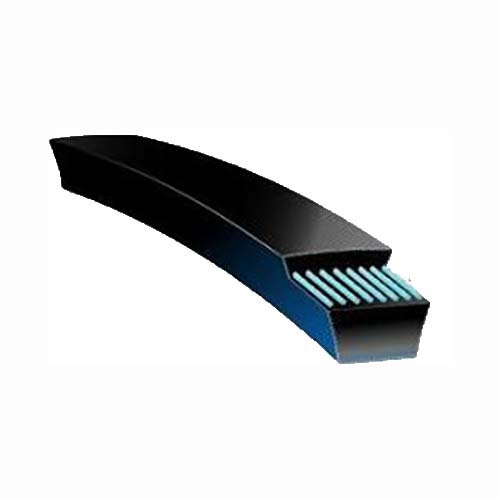

Gates 5L230 Truflex Light Duty V Belt
Available
Gates Truflex is a light-duty, wrapped fractional-horsepower (FHP) V-belt built for small drives that don’t need a heavy-duty section — auxiliary automotive drives (electric windows, wiper motors, central locking) as well as light industrial and domestic FHP equipment.
Where this product is used
Truflex is a fractional-horsepower belt, not a heavy-duty industrial or agricultural section. Typical applications include:
- Auxiliary automotive drives — electric windows, wiper motors and central locking systems
- Small pumps, fans, power tools and domestic appliances built around FHP-section belts
- Backside-idler drives, where Truflex’s low cord positioning improves performance
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | 5L |
| Belt Series | Truflex — light-duty, wrapped FHP V-belt |
| Available Stock Sizes (Gates range) | 23 to 100 in outside circumference |
| Construction | Gates Curves for uniform sheave-groove loading; Flex-Bonded cords; Flex-Weave oil- and heat-resistant cover |
| Standards | Meets ARPM/RMA IP-3-2 oil and heat resistance; ARPM/RMA IP-3-3 static conductivity; REACH and RoHS 2 compliant |
| Temperature Range | -30°C (-22°F) to +60°C (+140°F) |
Selecting the right option
Select by section (2L, 3L, 4L or 5L — width increases with the number) then by outside circumference or the OE/existing belt part number. Contact AIMS if you need help identifying your section from a worn or unmarked belt.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
23
Model Number: 8400-3230
-

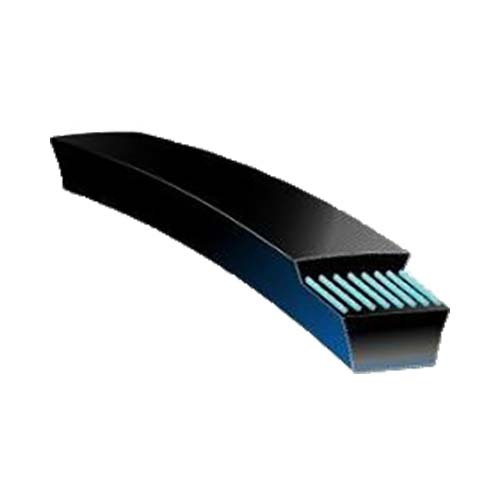

24
Model Number: 8400-3240
-
25
Model Number: 8400-3250
-
26
Model Number: 8400-3260
-
27
Model Number: 8400-3270
-
28
Model Number: 8400-3280
-
29
Model Number: 8400-3290
-
30
Model Number: 8400-3300
-

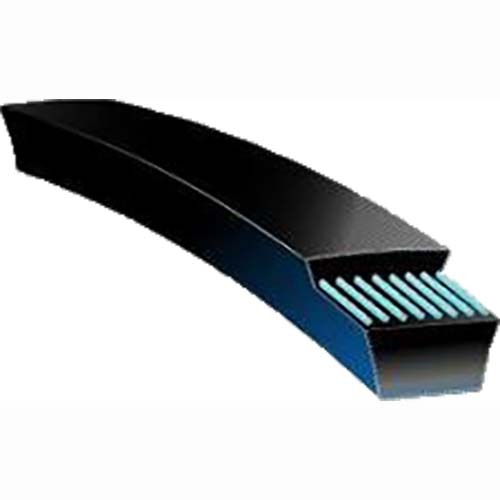

31
Model Number: 8400-3310
-

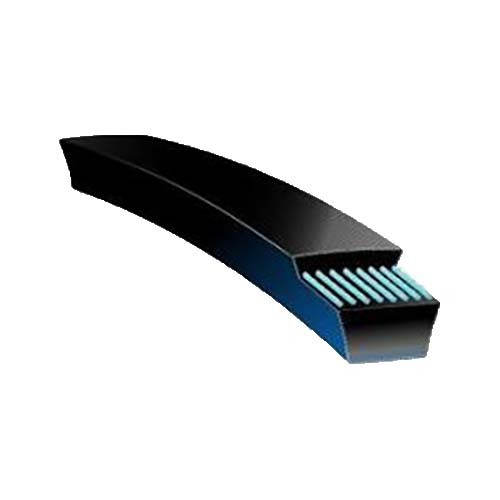

32
Model Number: 8400-3320
-
35
Model Number: 8400-3350
-
37
Model Number: 8400-3370
