Description
Description
Descriptions
- Due to its double and directly opposite teeth, PowerGrip® Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility

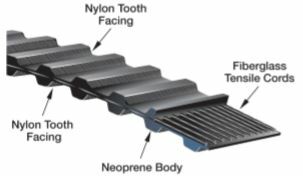

Construction
- Similar in construction to PowerGrip® classical synchronous belts: strong tensile member, precision formed elastomeric teeth and body
- Neoprene body provide protection against grime, grease, oil and moisture
- Fibreglass tensile cords
- Tough nylon facing protects and reinfonces the tooth surface.
Advantages
- Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
- Non-slip positive drive
- Runs at low noise
- Compact, light-weight, and cost e?ective drives
- High tooth jump resistance
- High efficiency positive drive
- Maintenance free
- No lubrication
Temperature Range
- Range: -30°C to +100°C
Specifications
Specifications
Dimensions
- Section: TP
- Pitch Length: 384 mm
- Pitch: 1/5 in
- Belt Width: 0.37 in
- T: 1.27 mm
- W: 0.5 mm
- Teeth: 192
Applications
Applications
Features & Benefits
Features & Benefits
