Gates TP1890-14MGT-40 (9232-50125) Twin
Available
This Gates Powergrip timing belt is the OE-quality replacement for automotive engine valve-train and camshaft timing systems. Manufactured in HNBR (nitrile rubber) with high-tensile glass fibre cord, Gates Powergrip belts are designed to run for the full OE service interval without stretching or losing tooth form. This page covers the Gates Twin Power GT2 Double Sided Synchronous Belt - 14MGT Section, available in 3 belt width (mm) options: 40, 55, 115.
Where this product is used
Gates Powergrip timing belts and tensioners serve both automotive and industrial synchronous drive applications. Typical end uses include:
- Automotive engine valve-train and camshaft timing systems requiring OE-level precision and service life
- Industrial synchronous drives on CNC machines, robotics, conveyors and high-speed indexing equipment
- Engine timing kits and scheduled maintenance for fleet vehicles, trucks and passenger cars
Key specifications
| Belt Section | 14MGT |
| Drive Type | Industrial Synchronous |
Selecting the right option
For automotive Powergrip timing belts and tensioners, select by vehicle make, model, engine code and year. Always replace the belt and tensioner together — mixing service lives defeats the purpose of a timing belt kit. For industrial synchronous belts, select by pitch (3MGT, 5MGT, 8MGT, 14MGT for Poly Chain GT Carbon; 3M, 5M, 8M for HTD) and belt width. Poly Chain GT Carbon belts deliver significantly higher power ratings in the same space envelope as standard HTD belts — worth specifying on any new drive design or where a standard HTD is failing ahead of schedule.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Twin Power GT2 Double Sided Synchronous Belt - 14MGT Section: 40
SKU: A0026124 | Model: 9232-50125

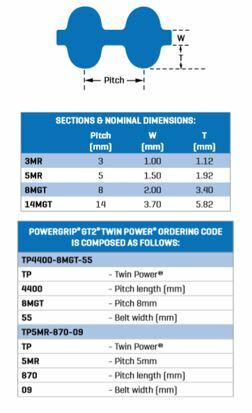

This is the 40mm belt width option of the Gates Twin Power GT2 Double Sided Synchronous Belt - 14MGT Section. Key details for this option: length 1890mm, belt width 40mm, pitch 14mm, number of teeth 135, teeth depth 5.82mm.
Descriptions

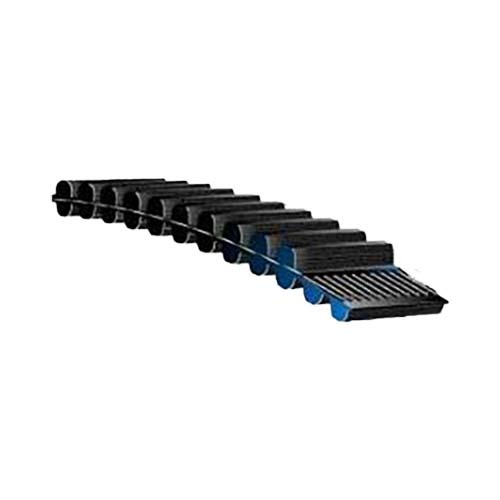

Due to its double and directly opposite teeth, Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility
Gates Twin Power® GT2 belt has at least twice the offer rating of Gates Twin Power® HTD® belts. It is characterised by extraordinary load-carrying offer and high tooth jump resistance, thus ensuring a positive non-slip drive. In addition, it runs at very low noise.
Construction
Notch depth is in proportion to the cross-section to ensure perfect stability
GT® (Gates Tooth) modified curvilinear tooth profile
Neoprene body provide protection against grime, grease, oil and moisture
Fibreglass tensile cords
Tough nylon facing protects and reinfonces the tooth surface.
Advantages
Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
Non-slip positive drive
Runs at low noise
Compact, light-weight, and cost e?ective drives
High tooth jump resistance
High efficiency positive drive
Maintenance free
No lubrication.
Temperature Range
Range: -30°C to +100°C
