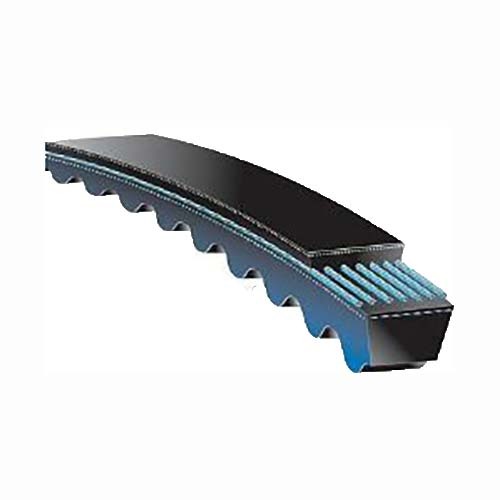

Gates XPA1900 QuadPower 4 Notch Belt Narrow Section (9644-01900)
Out of stock
This is the Gates XPA1900 QuadPower 4 Notch Belt Narrow Section (9644-01900).
The Gates QuadPower 4 Drive Belt XPA section delivers high-power, high-efficiency transmission for demanding industrial drives. The cogged underside reduces operating temperature on smaller sheave diameters, extending belt life and improving drive efficiency compared to equivalent wrapped V-belts of the same section, item 9644-01900.
Where this product is used
- High-power industrial drives on mills, crushers, mining conveyors and heavy-duty process equipment
- Agricultural and construction machinery subject to shock loads, vibration and variable torque demands
- Quarrying and material-handling systems where superior power ratings and extended belt life are critical
Features
- Polyester tensile cord with blue adhesion layer for stable tension, no re-tensioning required
- Notched underside
- Long service life
- Belt Section: XPA
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | XPA |
| Series | QuadPower 4, Gates' 4th-generation service-free raw edge V-belt |

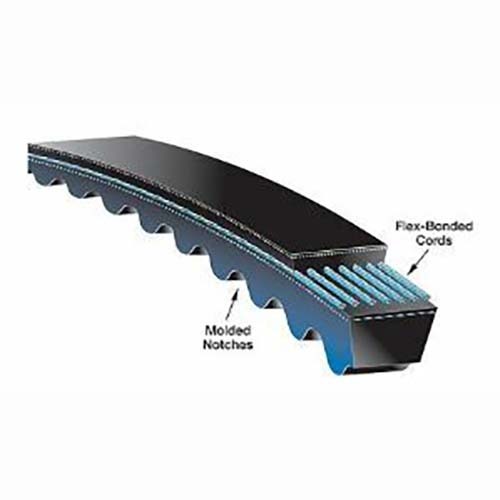

| Construction | Raw edge, moulded-notch (cogged) 2nd-generation EPDM compound, minimal-elongation polyester tensile cords with blue adhesion layer for stable tension over the belt's full life (no re-tensioning required), double Flex-Weave textile backing, non-self-igniting, static conductive (ISO 1813 & RMA IP3-3) |
| Nominal Dimensions (Width x Height) | 13 x 10mm |
| Belt Length | 1900mm (pitch length) |
| Available Length Range (single belt) | 690 - 4000mm |
| Temperature Range | -50°C to +130°C (ISO XP-coded belt), RMA-coded 3VX/5VX/8VX equivalents are rated -57°C to +121°C per Gates |
| Energy Efficiency | Up to 98%, approx. 3 percentage points higher than a wrapped V-belt of the same section (Gates) |
| Compliance | REACH & RoHS compliant, ATEX compatible (ISO 1813 static conductivity), halogen-free |
| Belt Matching | Meets Gates UNISET tolerances, any Quad-Power 4 belt of the same section and length matches any other, no belt-matching required |
Choosing the right option
Select by section designation: XPZ (10mm top, lightest duty), XPA, XPB, XPC (widest, highest power). QuadPower 4 XP belts are direct replacements for standard narrow V-belts of the same section and length, the cogged underside allows operation on smaller sheave diameters than wrapped equivalents. For Tri-Power AX/BX/CX cogged classical belts, cross-reference the A/B/C pitch length.
Product details
| Part number | 9644-01900 |
|---|---|
| Section | XPA |
| Belt Length (mm) | 1900 |
| Top Width (mm) | 13 |
| Belt Thickness (mm) | 10 |
| Underside | Cogged (notched) |
| Material | EPDM or rubber compound with high-tensile cord |
| V-Belt Code | XPA1900 |
