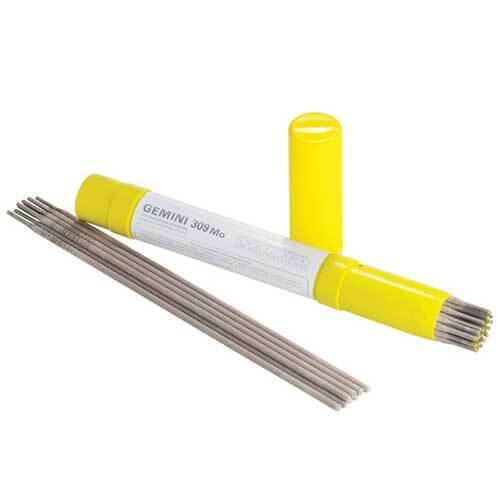

Gemini 309Mo stainless electrodes, 2.6mm
Available
The Gemini 309Mo Stainless Steel Electrodes are rutile-type electrodes recommended for welding 309 and 309L stainless steels. They are also suitable for dissimilar metal joints, including mild steel to stainless steel.
They are low spatter and run smoothly, with an excellent bead appearance. They suit buffer layers for stainless cladding. They come in a 1kg packet in 2.6 and 3.2mm.
Where this product is used
- Welding 309 and 309L stainless steels
- Dissimilar metals, including mild steel to stainless steel
- Buffer layer for stainless cladding
Features
- 309Mo stainless steel electrode
- Rutile type flux coating
- Low spatter and smooth running
- Easy to operate
- Excellent weld bead appearance
- 1kg packet
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gemini |
| Type | Stainless steel stick electrode, rutile coated |
| Diameters | 2.6mm and 3.2mm |
| Pack | 1kg |
| Welding positions | Flat, horizontal, vertical-up and overhead |
Choosing the right option
Choose the diameter to suit the material thickness and the amperage your machine delivers.
See also: Gemini 308L-16 Stainless Steel Electrodes, Gemini 680 Dissimilar Electrodes 1kg Packet, Gemini 316L-16 Stainless Steel Electrodes 1kg Packet.
| Option | Part number | SKU |
|---|---|---|
| 2.6mm | A0146985 | |
| 3.2mm | A0146986 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gemini 309Mo Stainless Steel Electrodes: 2.6 mm
SKU: A0146985 | Model: 100009
Diameter 2.6 mm. Gemini 309Mo Stainless Steel Electrodes Description Rutile type Electrodes, recommended for welding 309 & 309L stainless steels. Also suitable for welding dissimilar metals; mild steel to stainless steel. Low spatter & smooth running. AWS Specification / Industry Specification A5.4 E 309Mo-16 Features Rutile type flux coating Easy to operate Excellent weld bead appearance Handy 1KG pack Welding Positions Flat, Horizontal, Vertical Up and Overhead Applications Suitable for 309 and 309L Dissimilar metals Buffer layer for stainless cladding 4 packs/20Kg Carton.
