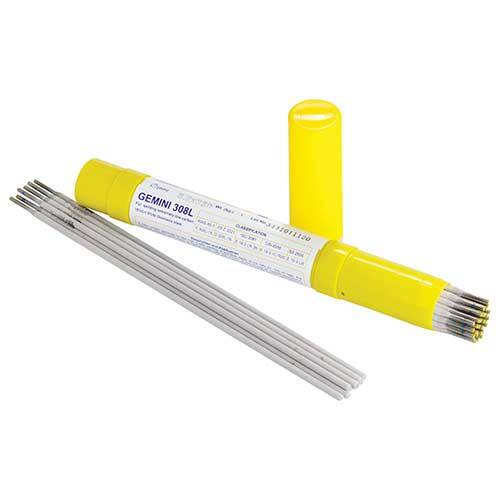

Gemini 308L-16 Stainless Steel Electrodes 2.6 mm | 100006
Available
The Gemini 308L-16 Stainless Steel Electrodes are rutile-type, low carbon electrodes for welding 301, 302, 304, 308 and 308L stainless steels. They are classified AWS A5.4 E308L-16 (manufacturer-stated).
The weld is very smooth with a clean edge. The rutile flux coating is easy to operate and gives an excellent bead appearance. They come in a 1 kg packet in 2.6 and 3.2 mm.
Where this product is used
- Welding 301, 302, 304, 308 and 308L stainless steels
- Stainless steel fabrication and repair
- General stainless steel welding
Features
- 308L-16 low carbon stainless steel electrode
- Classified AWS A5.4 E308L-16 (manufacturer-stated)
- Rutile type flux coating
- Easy to operate
- Smooth weld with a clean edge
- 1 kg packet
Key specifications
| Specification | Detail |
|---|---|
| Type | Stainless steel stick electrode, rutile coated |
| AWS classification (manufacturer-stated) | AWS A5.4 E308L-16 |
| Diameters | 2.6 mm and 3.2 mm |
| Pack | 1 kg |
| Welding positions | Flat, horizontal, vertical-up and overhead |
Options and part numbers
| Option | Part number | Diameter |
|---|---|---|
| 2.6 mm | 100006 | 2.6 mm |
| 3.2 mm | 100007 | 3.2 mm |
Selecting the right option
Choose the diameter to suit the material thickness and the amperage your machine delivers. If you are unsure which electrode suits your base metal and joint, contact AIMS with the metal and the joint you are making.
Related products
See also Gemini 316L-16 Stainless Steel Electrodes 1 kg Packet, Gemini 309Mo Stainless Steel Electrodes and Gemini 680 Dissimilar Electrodes 1 kg Packet.
