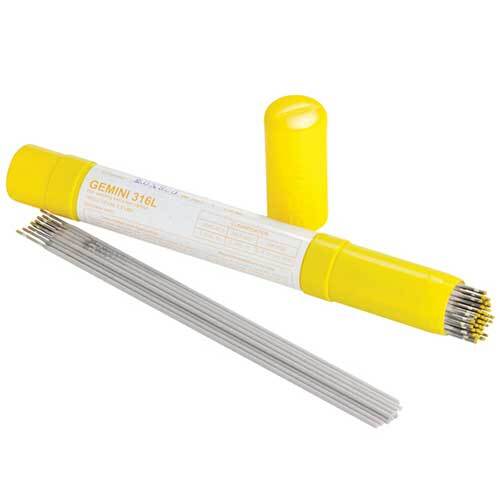

Gemini 316L-16 Stainless Steel Electrodes 5 kg Packet 2.6 mm | 1000235
Available
The Gemini 316L-16 Stainless Steel Electrodes 5 kg Packet is a rutile-coated stainless steel electrode for welding common 300 series stainless steels, including 301, 302, 304, 304L, 316 and 316L. It is classified AWS A5.4 E316L-16 (manufacturer-stated).
The rutile flux coating makes it easy to operate and leaves a smooth weld deposit with an excellent appearance. This listing is the 5 kg packet in 2.6 and 3.2 mm.
Where this product is used
- Welding common 300 series stainless steels
- General welding of 301, 302, 304, 304L, 316 and 316L stainless steel
- Corrosion-critical stainless steel fabrication and repair
Features
- 316L-16 stainless steel electrode
- Classified AWS A5.4 E316L-16 (manufacturer-stated)
- Rutile type flux coating
- Easy to operate
- Smooth weld deposit with excellent bead appearance
Key specifications
| Specification | Detail |
|---|---|
| Type | Stainless steel stick electrode, rutile coated |
| AWS classification (manufacturer-stated) | AWS A5.4 E316L-16 |
| Suits | 300 series stainless steels, including 301, 302, 304, 304L, 316 and 316L |
| Diameters | 2.6 mm and 3.2 mm |
| Pack | 5 kg |
| Welding positions | Flat, horizontal, vertical-up and overhead (not vertical down) |
Options and part numbers
| Option | Part number | Diameter |
|---|---|---|
| 2.6 mm | 1000235 | 2.6 mm |
| 3.2 mm | 1000245 | 3.2 mm |
Selecting the right option
Choose the diameter to suit the material thickness and the amperage your machine delivers. If you are unsure which electrode suits your base metal and joint, contact AIMS with the metal and the joint you are making.
