Gemini H600R hardfacing electrodes, 3.2mm
Available
The Gemini H600R Hardfacing Electrodes are rutile-coated electrodes for surfacing worn parts on civil engineering, construction and mining equipment without machining. They deposit weld metal of about 55 HRC on multiple layers and 52 HRC on a single layer, with high toughness and excellent abrasion resistance to medium impact.
They are classified DIN 8555 E 6-UM-55. Where more build-up is needed, they can be underlaid with 309MoL. They come in 3.2 and 4mm in 5kg packets.
Where this product is used
- Rebuilding gears, idlers, augers, buckets, tines, tracks and cable sheaves
- Facing guillotine blades, punches and dies
- Hardfacing earth engaging equipment
- Metal-to-metal wear without machining
Features
- H600R rutile coated hardfacing electrode
- Classified DIN 8555 E 6-UM-55
- About 55 HRC on multiple layers and 52 HRC on a single layer
- Excellent abrasion resistance to medium impact
- Tough weld metal
- Extends the life of many wearing parts
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gemini |
| Type | Rutile coated hardfacing stick electrode |
| Deposit hardness | About 55 HRC multi-layer, 52 HRC single layer |
| Classification | DIN 8555 E 6-UM-55 |
| Diameters | 3.2mm and 4mm |
| Pack | 5kg |
| Welding positions | Flat, horizontal and vertical-up |
Choosing the right option
Choose the diameter to suit the material thickness and the amperage your machine delivers.
See also: Gemini H600R Hardfacing Electrodes 3.2mm 6 Stick Handy Pack, Gemini 309Mo Stainless Steel Electrodes, Gemini 680 Dissimilar Electrodes 1kg Packet.
| Option | Part number | SKU |
|---|---|---|
| 3.2mm | A0147002 | |
| 4mm | A0147003 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

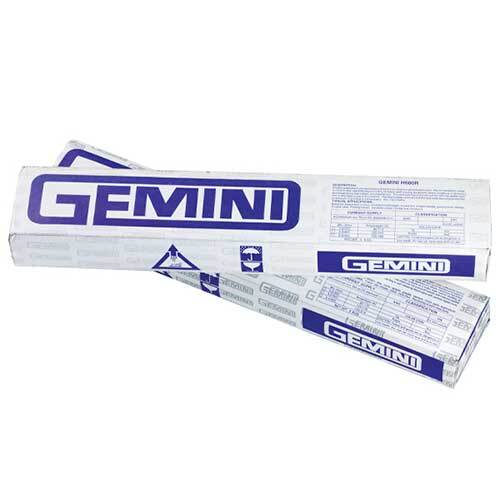

Gemini H600R Hardfacing Electrodes: 3.2 mm
SKU: A0147002 | Model: 100186
Diameter 3.2 mm. Gemini H600R Hardfacing Electrodes Description Rutile coated hardfacing Electrodes for surfacing worn parts of civil engineering, construction & mining equipment, without machining. Deposited metal of approx. 55 HRC provides high toughness & excellent abrasion resistance to medium impact. AWS Specification / Industry Specification DIN 8555 E 6-UM-55 Features Extends the operation life of many wearing parts Excellent abrasion resistance to medium impact Deposits weld metal of high toughness Hard facing Electrodes 52HRC Single layer, 55HRC multiple layers Welding Positions Flat, horizontal and vertical up Applications Suitable for facing guillotine blades, punches dies Hardfacing earth engaging equipment including- buckets, augers, tines.
