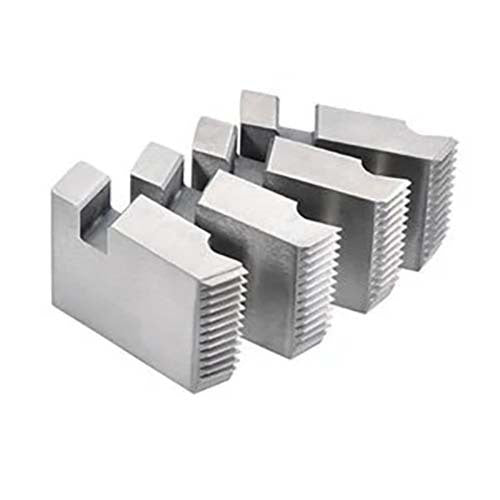

Goliath 3/4" BSW Coventry Chaser (Dieheads) 1/2" S-Rake Left Hand, 4 Pieces

The Goliath 3/4" BSW Coventry Chaser (Dieheads) 1/2" S-Rake Left Hand, 4 Pieces is a Coventry chaser. It is supplied as a pack of 4. It is made from HSS. Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines. The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.

Automatic self-opening at the completion of PACK cut makes Coventry ideal for batch or continuous production work. Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.

Where this product is used

• Suits work in steel, stainless steel, aluminium, brass and plastics

Features

• 4 piece coventry style thread cutting chaser
• Rugged - simple construction for reliability and long life
• Accurate Pitch - due to the guiding action of the non-cutting portion of the die
• Adjustability - providing fine regulation of finished diameter for 3a class threads
• Parallel threads - due to the very efficient support of the dies in the diehead
• Minimum downtime - for change of thread size, important for production economy on short to medium batch runs
• Compactness - permitting use on machines with limited clearance
• Made from HSS

Key specifications
