Goliath No. 7 x 0.48mm BA 13/16" HSS Circular Split Button Die - F72FA
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath BA HSS Circular Split Button Die, available in 8 diameter options: No. 0, No. 1, No. 2, No. 3, No. 4, No. 5, No. 6, No. 7.
Goliath BA tap and die sets cut British Association threads for electrical, instrument, and precision engineering applications in the 0–16 BA range.
Where this product is used
Goliath ba tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting British Association threads for electrical components, instruments, and precision assemblies.
- Electronics manufacturing and repair work using miniature BA thread sizes.
- Precision engineering toolrooms holding the full 0–16 BA thread range.
Key specifications
| Specification | Detail |
|---|---|
| Material Grade | HSS |
Selecting the right option
BA sets cover miniature thread sizes 0–16 BA for instrument and electrical work. BA threads decrease in size with increasing number — 0 BA is the largest, 16 BA the smallest. Select the set that covers your required BA size range.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

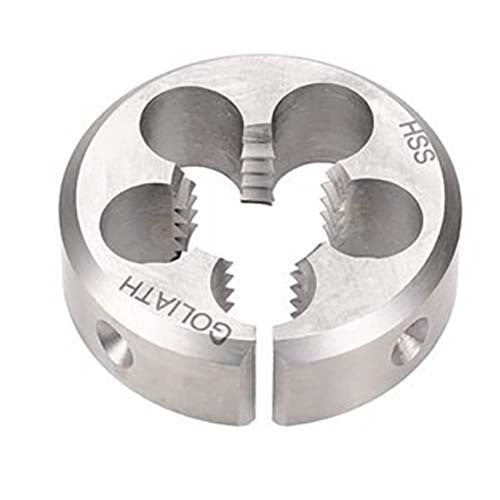

Goliath BA HSS Circular Split Button Die: No. 7
SKU: A0199926 | Model: F72FA
This is the diameter No. 7 option of the Goliath BA HSS Circular Split Button Die. Key details for this option: thread form type BA, pitch 0.48mm.
Goliath BA HSS Circular Split Button Die
HSS Circular Split Button Die
HSS Button Dies (also known as Adjustable Dies) are designed for cutting external threads.
They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder.
They also can be used to cut smaller or larger, than factory setting, by utilising the adjusting screws in the die holder.
Dies are manufactured with a thread chamfer to aid starting.
M2-HSS material provides increased wear resistance and superior thread accuracy.
British Association thread form - in 1884 the British Association for the Advancement of Science adopted a thread form and series, primarily for use in precision equipment.
It was inspired by one used in the Swiss watch and clock industry, and was formerly sometimes called the Swiss Small Screw Thread System; but is now just referred to as the BA series.
Like the Whitworth thread, it has a rounded root and crest, but the included angle is 47.5º.
Despite the date of origin and the British sponsorship, the BA is a metric series.
Not only is it based on the metre, but the thread frequency is specified in terms of round numbers in the pitch sequence, with threads per metre allowed to fall where it may.
