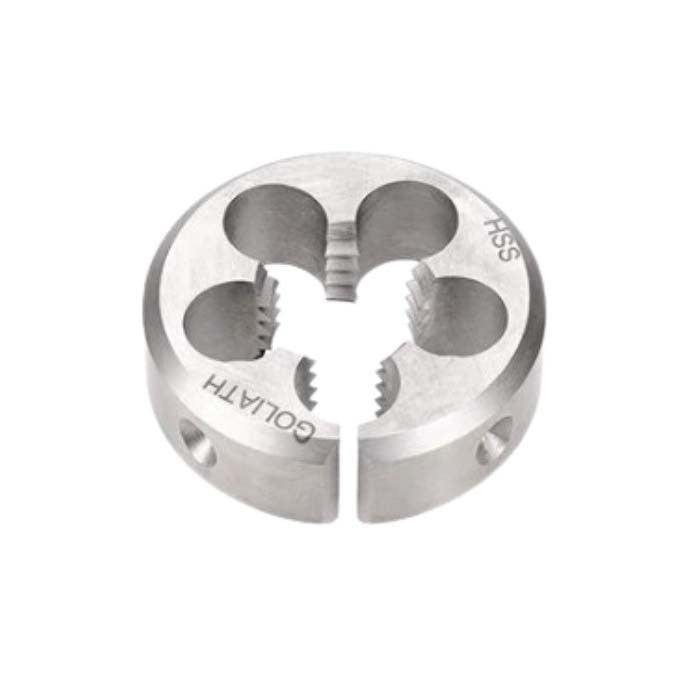

Goliath UN (BSC) HSS Circular Split Button Die
- HSS Circular Split Button Die
- HSS Button Dies (also known as Adjustable Dies) are designed for cutting external threads.
- They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder.
- They also can be used to cut smaller or larger, than factory setting, by utilising the adjusting screws in the die holder.
- Dies are manufactured with a thread chamfer to aid starting.
- M2-HSS material provides increased wear resistance and superior thread accuracy.
- British Standard Cycle (BSC) thread runs at 60º making it the equivalent of 60° UN, not 55° as used in BSW and BSF threads.
- All sizes 1/4" and larger use 26 TPI.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Goliath BSC HSS Circular Split Button Die
Goliath BSC HSS Circular Split Button Die
SKU: A0200516
Type: Button Die
- Wide Range
- Reliable Services
- Proven Trust
Available
The Goliath BSC HSS Circular Split Button Die by Goliath is a Button Die made from M2-HSS providing increased wear resistance and superior thread accuracy. It offers 26 TPI and is suitable for threading rods bolts and studs.
