Goliath 3/8" BSP Coventry Chaser (Dieheads) 1/2" M5-Rake
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath BSP Coventry Chaser (Dieheads) M5-Rake, available in 2 size options: 1/8", 3/8".
Goliath BSP tap and die sets cut British Standard Pipe threads for threading pipe fittings, hydraulic connections, and fluid system components.
Where this product is used
Goliath bsp tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Threading pipe connections, hydraulic fittings, and fluid system components to BSP standard.
- Plumbing, pneumatic, and hydraulic system assembly and repair.
- Manufacturing and maintenance of British-standard threaded pipe fittings.
Key specifications
| Specification | Detail |
|---|---|
| Thread Size | M5 |
Selecting the right option
BSP sets suit pipe fitting and fluid system work to British Standard Pipe parallel thread form. Confirm BSP (parallel) versus BSPT (taper) — they are not interchangeable. Select the set that covers the pipe sizes in your system.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath BSP Coventry Chaser (Dieheads) M5-Rake: 3/8"
SKU: A0200868 | Model: P38SP12M5
Size 3/8". Goliath BSP Coventry Chaser (Dieheads) M5-Rake

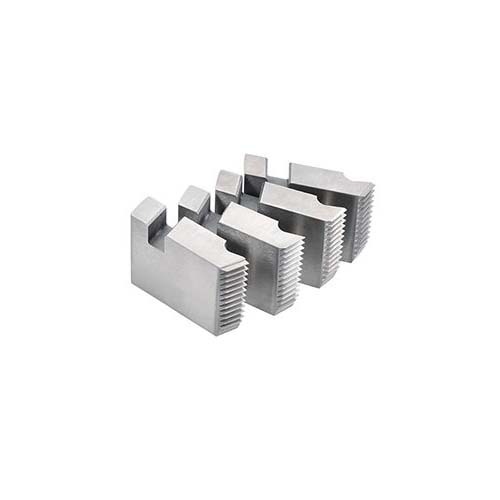

4 piece coventry style thread cutting chaser.
Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines.
The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.
Automatic self-opening at the completion of each cut makes Coventry ideal for batch or continuous production work.
Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
Rugged - simple construction for reliability and long life.
Compactness - permitting use on machines with limited clearance.
Accurate Pitch - due to the guiding action of the non-cutting portion of the die.
Adjustability - providing fine regulation of finished diameter for 3a class threads.
Parallel threads - due to the very efficient support of the dies in the diehead.
Minimum downtime - for change of thread size, important for production economy on short to medium batch runs.
