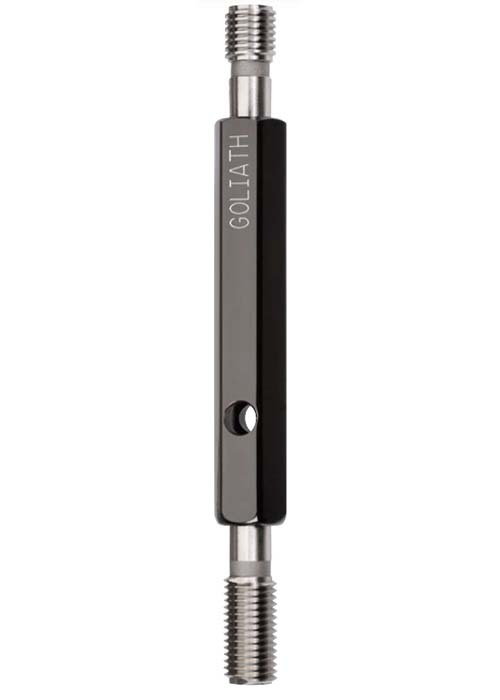

Goliath BSPF Thread Plug Gauge Go/No-Go 1" x 11 TPI
Out of stock
Screw Plug Gauge GO controls the workpiece's internal thread's pitch diameter and major diameter's maximum physical size. Screw Plug Gauge GO end should be screwed into the entire length of the internal thread of the workpiece to ensure thread conformity. Screw Plug Gauge NOGO controls the workpiece's internal thread's single pitch and diameter's minimum physical size. Screw Plug Gauge NOGO can be screwed in, but if it can be screwed in more than two turns then the thread does not meet conformity.
Freight: most orders are priced live at checkout. For some items or locations we can’t calculate a live rate — if that happens, you’ll be able to request a freight quote at checkout and our team will get back to you with a delivery cost. Please email our team at sales@aimsindustrial.com.au or call (02) 9773 0122.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
11 / 1mm measuring tool
Model Number: 3046-1P
- 11 / 1/4mm measuring tool
- 11 / 1/2mm measuring tool
- 14 / 1/2mm measuring tool
- 14 / 3/4mm measuring tool
- 14 / 5/8mm measuring tool
- 14 / 7/8mm measuring tool
- 19 / 1/4mm measuring tool
- 19 / 3/8mm measuring tool
- 28 / 1/8mm measuring tool
