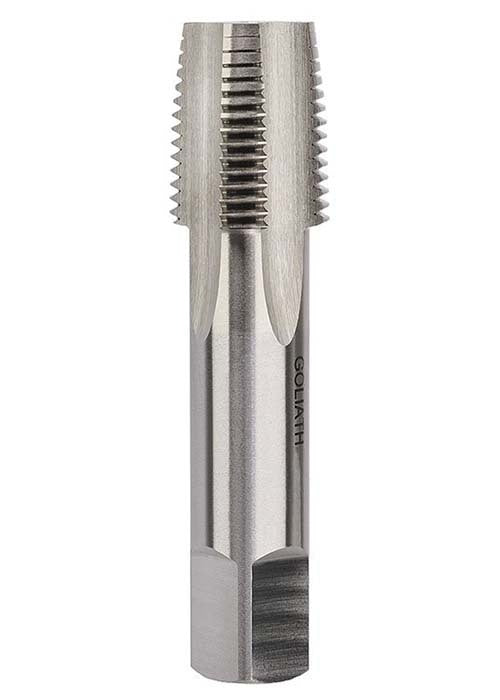

Goliath 1" x 11 TPI BSPT Taper HSS Bright Pipe Tap - C87XHA5

Product Features

• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life
• The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other
• The taper is "1 to 16", meaning that for each 16 mm increase in the distance from the end, the diameter increases by 1 mm

Applications

• Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use

Specifications

• Tapered Pipe Taps are used for tapered threading by hand or machine
• BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread
• HSS Bright Finish BSPT Hand and Machine Taper Tap
• British Standard Pipe Taper (RC Series Pipe Taper) is based on the Whitworth thread form - a symmetrical V-thread with an angle of 55°
