Goliath BSW Coventry Chaser (Dieheads) S-Rake

SKU: A0198011

Type: Threading Die

$344.30

Inc. GST

🔧High Speed Steel (HSS)

⚙BSW Coventry Chaser S-Rake

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑Adjustable for Versatile Fit

Available

Product Highlights −

Goliath BSW Coventry Chaser (Dieheads) S-Rake

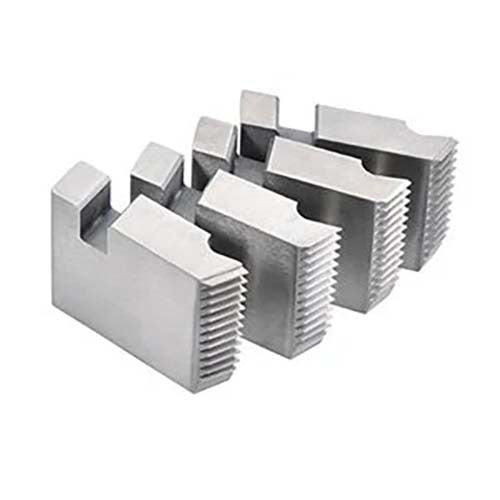

4 piece coventry style thread cutting chaser.
Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines.
The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.
Automatic self-opening at the completion of PACK cut makes Coventry ideal for batch or continuous production work.
Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
Rugged - simple construction for reliability and long life.
Compactness - permitting use on machines with limited clearance.
Accurate Pitch - due to the guiding action of the non-cutting portion of the die.
Adjustability - providing fine regulation of finished diameter for 3a class threads.
Parallel threads - due to the very efficient support of the dies in the diehead.
Minimum downtime - for change of thread size, important for production economy on short to medium batch runs.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

1" / 1mm threading die
Model Number: P1W1S
1" / 1-1/4mm threading die
Model Number: P1W114S
1" / 2mm threading die
Model Number: P1W2S
1-1/4" / 1mm threading die
Model Number: P114W1S
1-1/4" / 1/4mm threading die
Model Number: P114W114S
1-1/4" / 2mm threading die
Model Number: P114W2S
1-1/8 / 1-1/4mm threading die
Model Number: P118W114S
1/2" / 1mm threading die
Model Number: P12W1S
1/2" / 1/2mm threading die
Model Number: P12W12S
1/2" / 3/4mm threading die
Model Number: P12W34S
1/4" / 1mm threading die
Model Number: P14W1S
1/4" / 1/4mm threading die
Model Number: P14W14S
1/4" / 3/4mm threading die
Model Number: P14W34S
1/4" / 5/16mm threading die
Model Number: P14W516S
1/8" / 1/2mm threading die
Model Number: P18W12S
1/8" / 5/16mm threading die
Model Number: P18W516S
3/4" / 1mm threading die
Model Number: P34W1S
3/4" / 1/2mm threading die
Model Number: P34W112S
3/4" / 3/4mm threading die
Model Number: P34W34S
3/8" / 1mm threading die
Model Number: P38W1S
3/8" / 1/2mm threading die
Model Number: P38W12S
3/8" / 1/4mm threading die
Model Number: P38W14S
3/8" / 3/4mm threading die
Model Number: P38W34S
3/8" / 3/8mm threading die
Model Number: P38W38S
3/16" / 1/2mm threading die
Model Number: P316W12S
3/16" / 5/16mm threading die
Model Number: P316W516S
3/32" / 5/16mm threading die
Model Number: P332W516S
5/8" / 1-1/2mm threading die
Model Number: P58W112S
5/8" / 1-1/4mm threading die
Model Number: P58W114S
5/8" / 3/4mm threading die
Model Number: P58W34S
5/16" / 1mm threading die
Model Number: P516W1S
5/16" / 1-1/4mm threading die
Model Number: P516W114S
5/16" / 1/2mm threading die
Model Number: P516W12S
5/16" / 1/4mm threading die
Model Number: P516W14S
5/16" / 3/4mm threading die
Model Number: P516W34S
5/16" / 5/16mm threading die
Model Number: P516W516S
5/32" / 1/2mm threading die
Model Number: P532W12S
5/32" / 5/16mm threading die
Model Number: P532W516S
7/8" / 1mm threading die
Model Number: P78W1S
7/8" / 1/4mm threading die
Model Number: P78W114S
7/16" / 1mm threading die
Model Number: P716W1S
7/16" / 1-1/4mm threading die
Model Number: P716W114S
7/16" / 1/2mm threading die
Model Number: P716W12S
7/16" / 3/4mm threading die
Model Number: P716W34S
9/16" / 1mm threading die
Model Number: P916W1S
9/16" / 3/4mm threading die
Model Number: P916W34S
11/16" / 3/4mm threading die
Model Number: P116W34S
13/16" / 1mm threading die
Model Number: P1316W1S
