Goliath 1/2" UNC Coventry Chaser (Dieheads) 3/4" M5-Rake
Available
Goliath is an Australian precision cutting tool brand supplying HSS taps, threading dies, tap and die sets, thread gauges, and key steel to engineering, manufacturing, maintenance, and toolmaking operations across Australia. This page covers the Goliath UNC Coventry Chaser (Dieheads) M5-Rake, available in 2 size options: 1/2", 7/16".
Goliath UNC tap and die sets cover the Unified National Coarse thread range for threading applications in American-standard machinery, equipment, and fastener repair.
Where this product is used
Goliath unc tap and die set products are used across engineering workshops, production machining, and industrial maintenance programs.
- Cutting Unified National Coarse threads for American-standard machinery, equipment, and fastener work.
- Maintenance and repair of American-standard equipment and imported machinery with UNC fixings.
- Workshop threading in industries using American or US-export equipment.
Key specifications
| Specification | Detail |
|---|---|
| Thread Size | M5 |
Selecting the right option
Select the UNC set that covers your required size range — Goliath offers sets from No. 2 to 3/4" UNC. HSS grade suits hand and light machine threading on steel, aluminium, and non-ferrous materials. For production work on individual UNC sizes, consider individual Goliath machine taps.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Goliath UNC Coventry Chaser (Dieheads) M5-Rake: 1/2" / 3/4
SKU: A0196262 | Model: P12NC34M5
Size 1/2", Diehead Size (inch) 3/4. Goliath UNC Coventry Chaser (Dieheads) M5-Rake

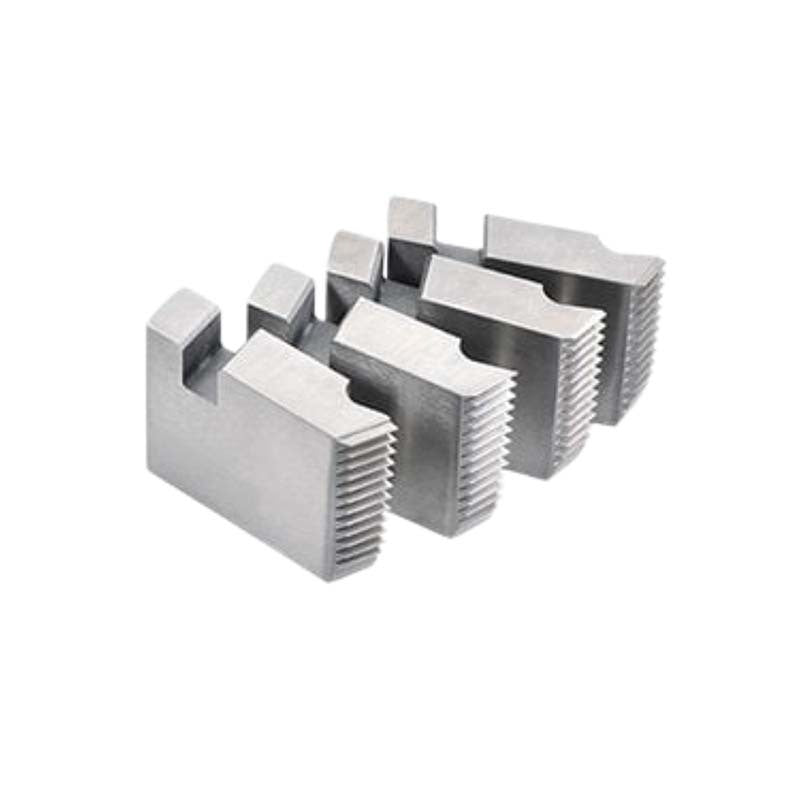

4 piece coventry style thread cutting chaser.
Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines.
The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations.
Automatic self-opening at the completion of each cut makes Coventry ideal for batch or continuous production work.
Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
Rugged - simple construction for reliability and long life.
Compactness - permitting use on machines with limited clearance.
Accurate Pitch - due to the guiding action of the non-cutting portion of the die.
Adjustability - providing fine regulation of finished diameter for 3a class threads.
Parallel threads - due to the very efficient support of the dies in the diehead.
Minimum downtime - for change of thread size, important for production economy on short to medium batch runs.
